Primare Pre35 Preamplifier

Technology

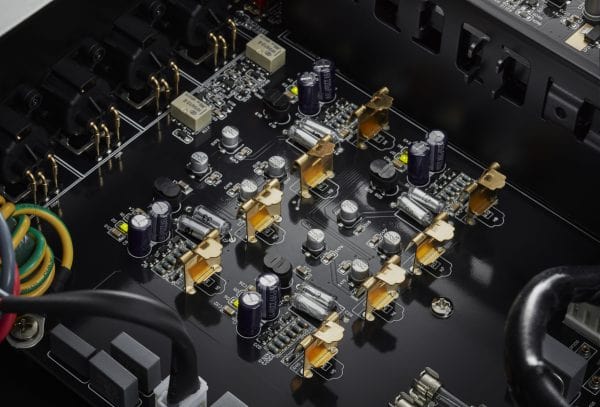

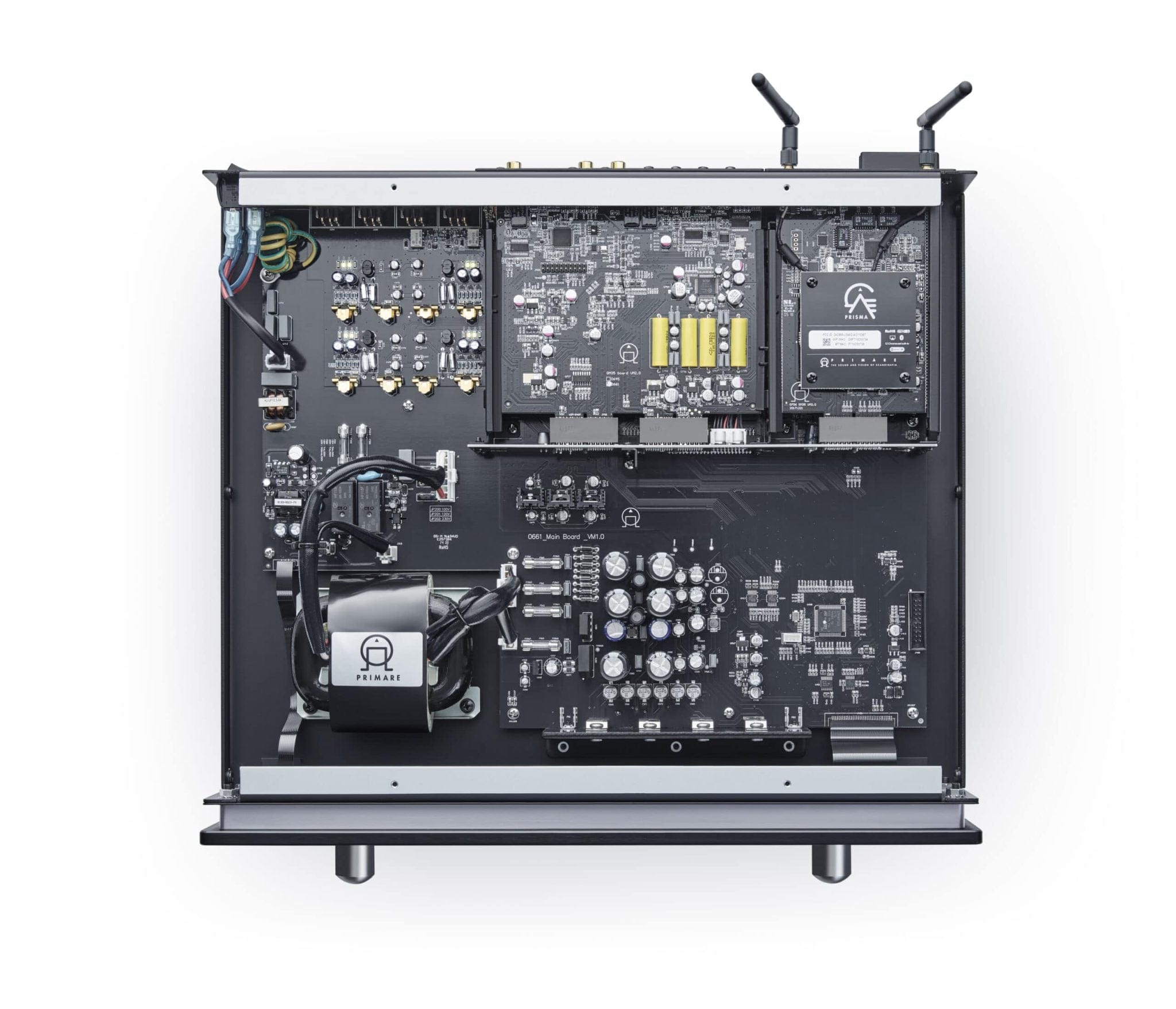

PRE35 Prisma modular preamplifier is an exceptional system control centre, providing unprecedented low noise and distortion free selection and transmission of any analog input, as a result of the carefully crafted fully balanced circuit design benefitting from the use of a four layer main board to achieve the shortest possible signal path.

In addition to comprehensive input and output options, featuring both XLR and RCA connection, the PRE35 Prisma includes includes both the sophisticated digital to analog converter module, DM35, as well as a Prisma network player module, SM35, to create an extraordinarily versatile system control centre.

The DM35 is a full-featured digital to analog converter stage enabling up to PCM 768kHz/32bit and DSD 256 conversion.

With the DM35 module installed, PRE35 Prisma includes WiSA high resolution wireless speaker connectivity with WiSA enabled high performance powered loudspeakers, and is a feature unique to this high-performance preamplifier.

Prisma DM36 – Network and Multi room Technology

Prisma is a bundle of technologies that provide the broadest range of network music player features and functionality. Essentially created to be a streamer that would allow everyone, and everywhere, in the household to explore, discover, and share the deeply satisfying experience of high-performance music playback – Prisma provides multi-room/multi-zone connectivity and control of stored and streamed media, whether wired or wireless, all managed from mobile devices through the dedicated Prisma system control app.

In addition to AirPlay 2, Bluetooth^®, Roon Ready*, and Spotify Connect^®, Prisma features Chromecast built-in, a unique streaming portal allowing effortless direct connection to hundreds of streaming applications and services, including voice control, for the best possible performance and user experience.

*with future update

The look and feel of Scandinavia

We believe that every aspect of our products – the way they look, the satisfying feel of the controls – contributes to the overall experience of living with Primare. As a result, Primare products exude the hallmarks of Scandinavian design – simple, elegant designs, with approachable and easy to understand functionality.

An example of this is our signature control knob, known throughout the industry for both its appearance as well as how it feels in the hand as an input is selected or volume adjusted. – or as we say lagom, not too much not too little, everything in balance, proportion, and harmony.

Modular Design and System Building

Primare feel it is essential to offer modularity whenever possible in order to have just the right features, both now and for the future. Modular design is featured in the I25 and I35 modular integrated amplifiers, as well as the PRE35 modular preamplifier, all of which can be updated with DAC and Prisma modules, as well as the CD35 CD player that can have the Prisma module added, either at the time of purchase or at a later date.

As a result, they are able to offer a carefully considered array of models and configurations in order to allow for device selection that best fits any system need. For example, a CD35 with Prisma module installed can be paired with an I35 integrated amplifier, allowing for a separation of analog and digital stages.

Or, an I35 with DAC and Prisma modules installed can be paired with a DD35 CD transport, allowing for multi-room and multi-zone playback of every input, whether analog or digital source.

Technical Specifications

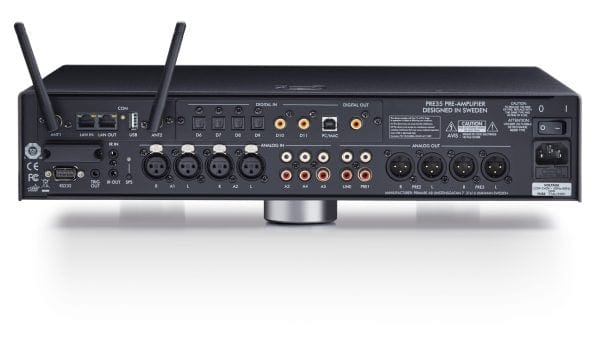

Analogue Inputs
3 x RCA Stereo Pairs
2 x LXR Stereo Pairs

Analogue Outputs
1 x RCA Stereo Pair Line Output
1 x RCA Stereo Pair Pre Output
2 x XLR Stereo Pairs Pre Output

Remote Control
C25 remote IR system control

IR
3.5 mm Input/Output

12V Trigger Out
Yes

RS232
Outboard System Control Port

Weight
11.3 Kg

Dimensions (W x D x H)
430 x 420 x 106 mm

Finishes
Black or Titanium

Specifications with Prisma

Analogue Inputs
3 x RCA Stereo Pairs
2 x LXR Stereo Pairs

Analogue Outputs
1 x RCA Stereo Pair Line Output
1 x RCA Stereo Pair Pre Output
2 x XLR Stereo Pairs Pre Output

DAC
ESS ES9068A

Digital Inputs
4 x Toslink
2 x RCA Coax
1 x USB-B (PC/MAC)

Digital Outputs
1 x RCA Coax

Remote Control
C25 remote IR system control

IR
3.5 mm Input/Output

12V Trigger Out
Yes

RS232
Outboard System Control Port

Prisma Connectivity and Control
Yes

USB-A
Yes x 1 digital input

Network
Ethernet x 2
WiFi

Streaming
AirPlay
Bluetooth
Chromecast built-in
Spotify Connect

Weight
11.3 Kg

Dimensions (W x D x H)
430 x 420 x 106 mm

Finishes
Black or Titanium

PRE35 Preamplifier and A35.2 Amplifier

In this video you'll see a review the features and functionality of both the A35.2 amplifier and the PRE35 modular preamplifier platform that may make them the perfect addition to your system.
