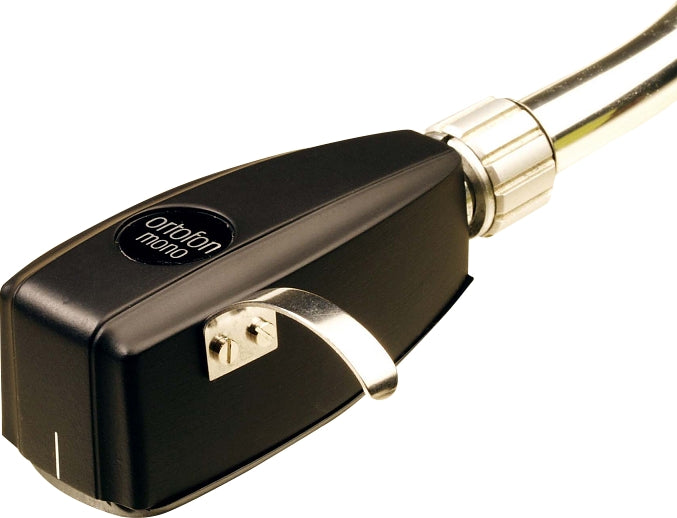

Ortofon SPU Mono GM MKII Moving Coil Cartridge
"WE ASSURE YOU THAT ALL OUR PRODUCTS ARE 100% GENUINE AND COME WITH A FULL AUSTRALIAN WARRANTY."
SPU Mono GM MKII
The SPU Mono GM MkII is a high output Moving Coil cartridge with a spherical stylus profile for the playback of early 25µm mono recordings.
The SPU Mono GM MkII provides an authentic method of playing back these early vinyl recordings with a remarkable level of sonic accuracy, and its high output negates the need for a moving coil transformer.
Technical Specifications
- Output voltage at 1000 Hz, 5cm/sec. - 3 mV
- Frequency response - 20-15.000 Hz + 2/- 1 dB
- Tracking ability at 315Hz at recommended tracking force *) > 70 µm
- Compliance, dynamic, lateral - 12 µm/mN
- Stylus type - Spherical
- Stylus tip radius - R 25 µm
- Tracking force range - 3.0-5.0 g (30-50 mN)
- Tracking force, recommended - 3.5 g (35 mN)
- Tracking angle - 20°
- Internal impedance, DC resistance - 100 ohm
- Recommended load impedance - 47 kohm
- *) Typical value
- Cartridge body material - Ground wood and resin composite
- Coil wire material - High Purity Copper (OFC)
- Cartridge colour - Shiny black
- Cartridge weight - 30 g
