Ortofon SPU 1 E Moving Coil Cartridge
"WE ASSURE YOU THAT ALL OUR PRODUCTS ARE 100% GENUINE AND COME WITH A FULL AUSTRALIAN WARRANTY."

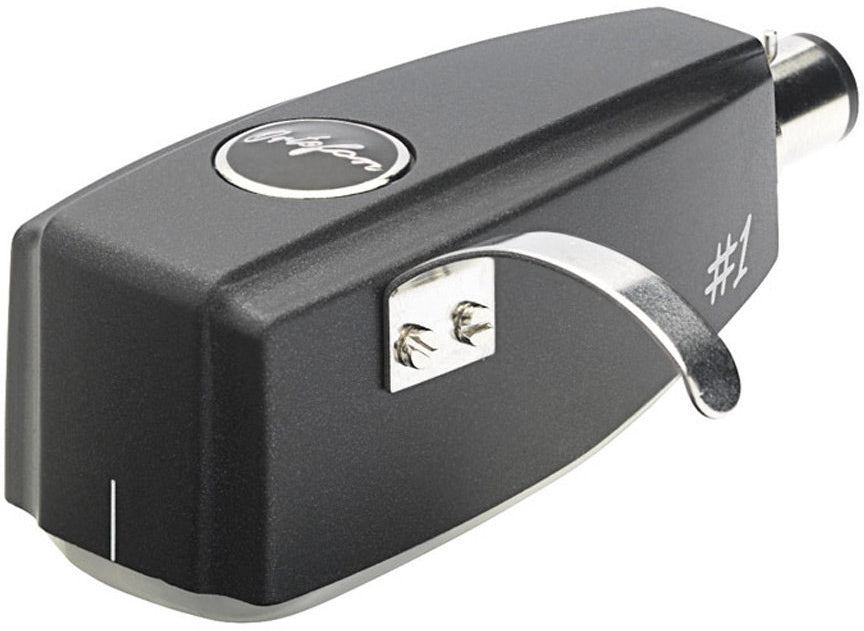

Ortofon SPU 1 E
The SPU 1 E and S models are a remarkable embodiment of the classic Moving Coil technology, offering an ideal solution for playing back a wide range of stereo recordings, from the early classics to modern and contemporary pieces, with an outstanding price-to-performance ratio.
Their universal connector ensures the ability to mount the units in a wider range of tonearms with universal (SME) mount, e.g. Ortofon TA-110 and TA-210 tonearms. The combination of SPU 1, ST-7 Moving Coil transformer and TA-110/TA-210 tonearms gives a supreme experience.
Sonically, the SPU 1 models are genuine SPUs, known for their full-bodied and powerful music image, minimum of intermodulation distortion and an impressive channel separation.
With their linearity and full bodies, the SPU #1 models are a perfect solution for the playback of stereo recordings.
Technical Specifications
- Output voltage at 1000 Hz, 5cm/sec. - 0.18 mV
- Channel balance at 1 kHz - 1.5 dB
- Channel separation at 1 kHz - 20 dB
- Channel separation at 15 kHz - 10 dB
- Frequency response - 20-25.000 Hz - ± 3 dB
- Tracking ability at 315Hz at recommended tracking force *) 65 µm
- Compliance, dynamic, lateral - 10 µm/mN
- Stylus type - Spherical / Elliptical
- Stylus tip radius - R 18 µm / r/R 8/18 μm
- Tracking force range - 3.0-5.0 g (30-50 mN)
- Tracking force, recommended - 4.0 g (40 mN)
- Tracking angle - 20°
- *) Typical value
- Internal impedance, DC resistance - 2 ohm
- Recommended load impedance > 10 ohm
- Cartridge body material - Ground wood and resin composite
- Coil wire material - High Purity Copper (OFC)
- Cartridge colour - Black matte
- Cartridge weight - 30 g
