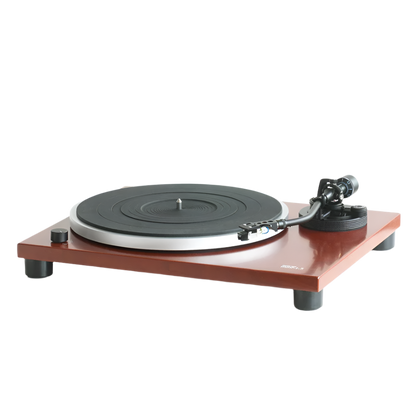

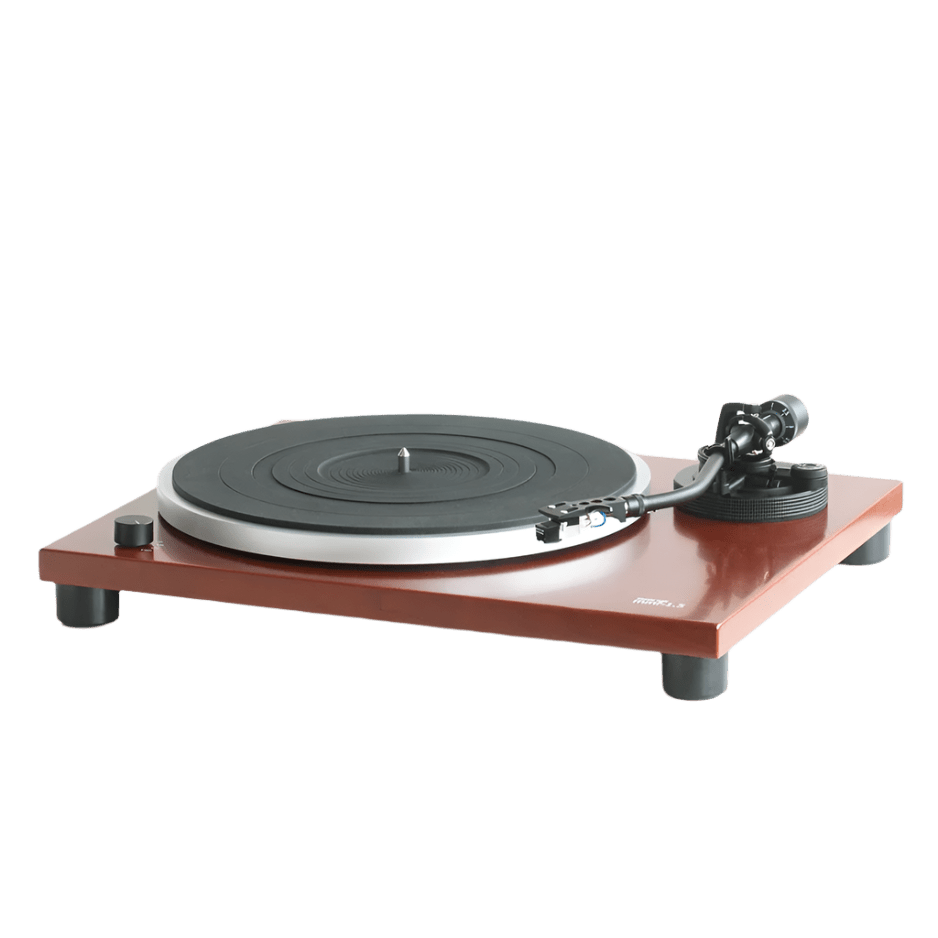

Music Hall MMF 1.5 Turntable

Presenting MMF 1.5 Turntable

Beauty personified from Music Hall

The stunning MMF-1.5, with its superior S-Shaped alloy tonearm, Music Hall Melody Cartridge, 3-Speed Belt Drive Design, and Built-In Phono Pre-Amp, is a Beautifully refined piece.

In the Groove

From the first music note to the final fade-out, the music hall mmf-1.5 sets your world to groove and your feet to dance.

The Complete Package

A built-in phono preamplifier allows you to connect directly to your current system.

A top-quality music hall melody cartridge comes pre-mounted and precision-aligned.

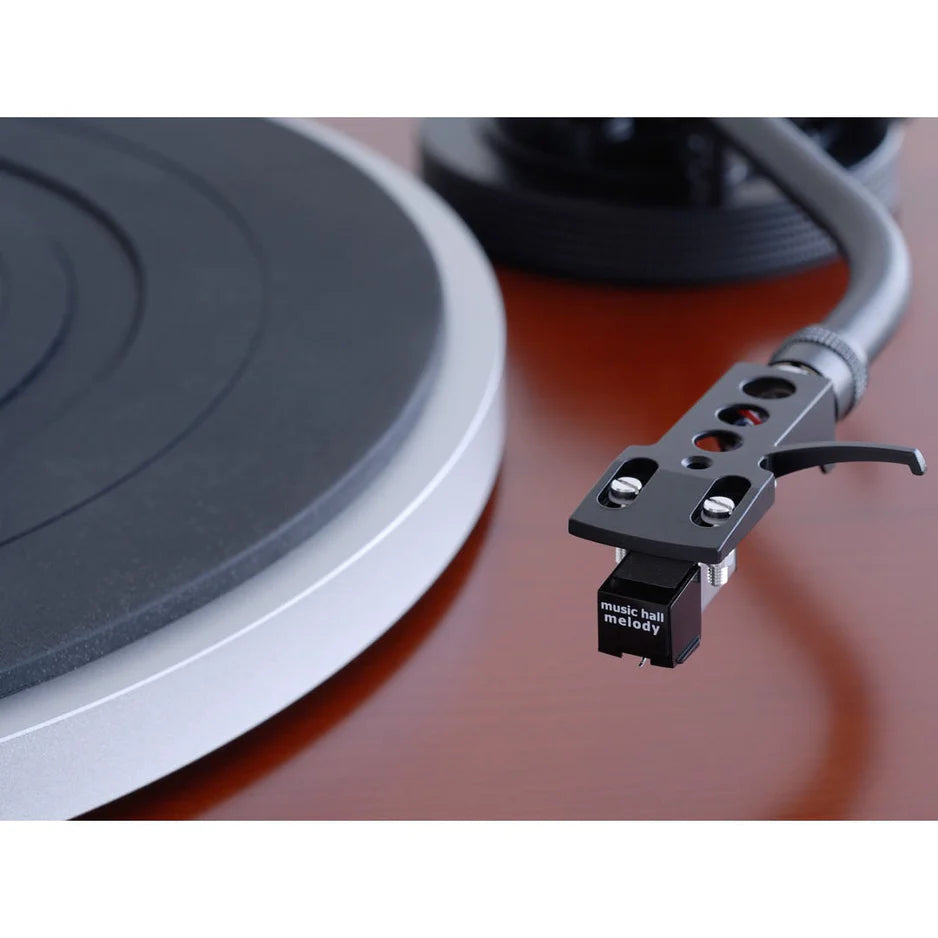

Melody Cartridge

A top-quality music hall melody cartridge comes pre-mounted and precision-aligned.

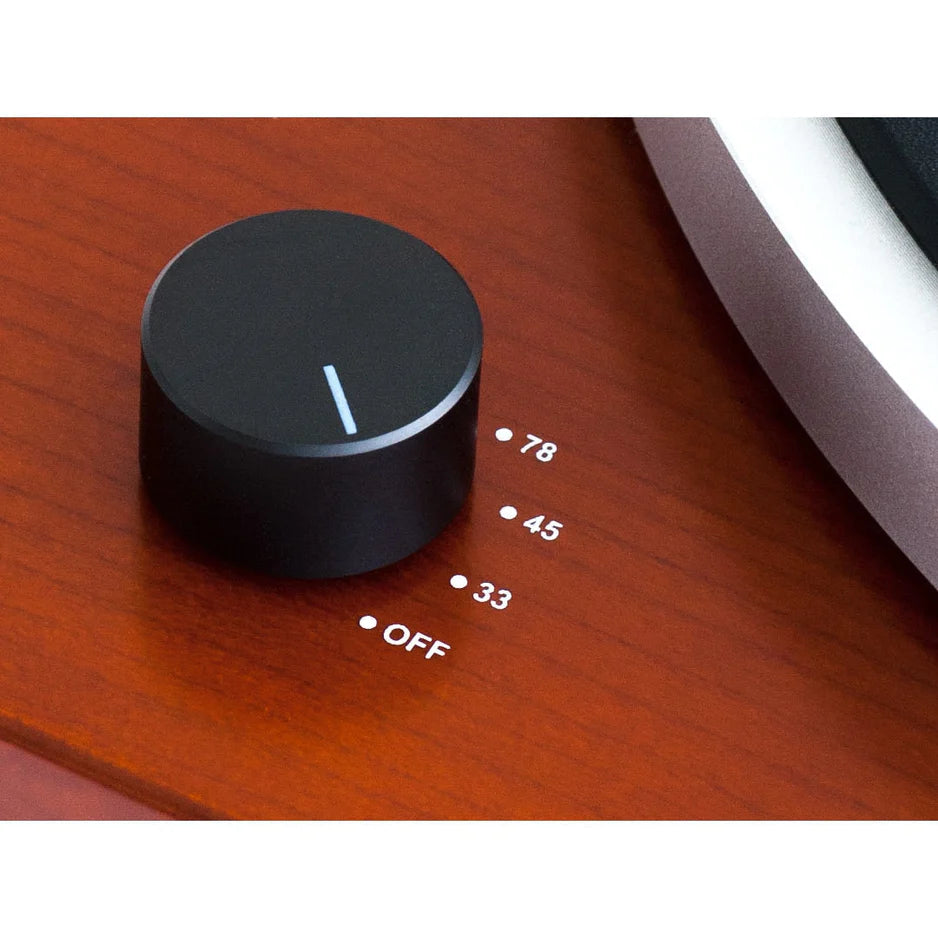

Speed Control

A built-in speed control circuit ensures the accuracy of the mmf-1.5’s 3 speeds

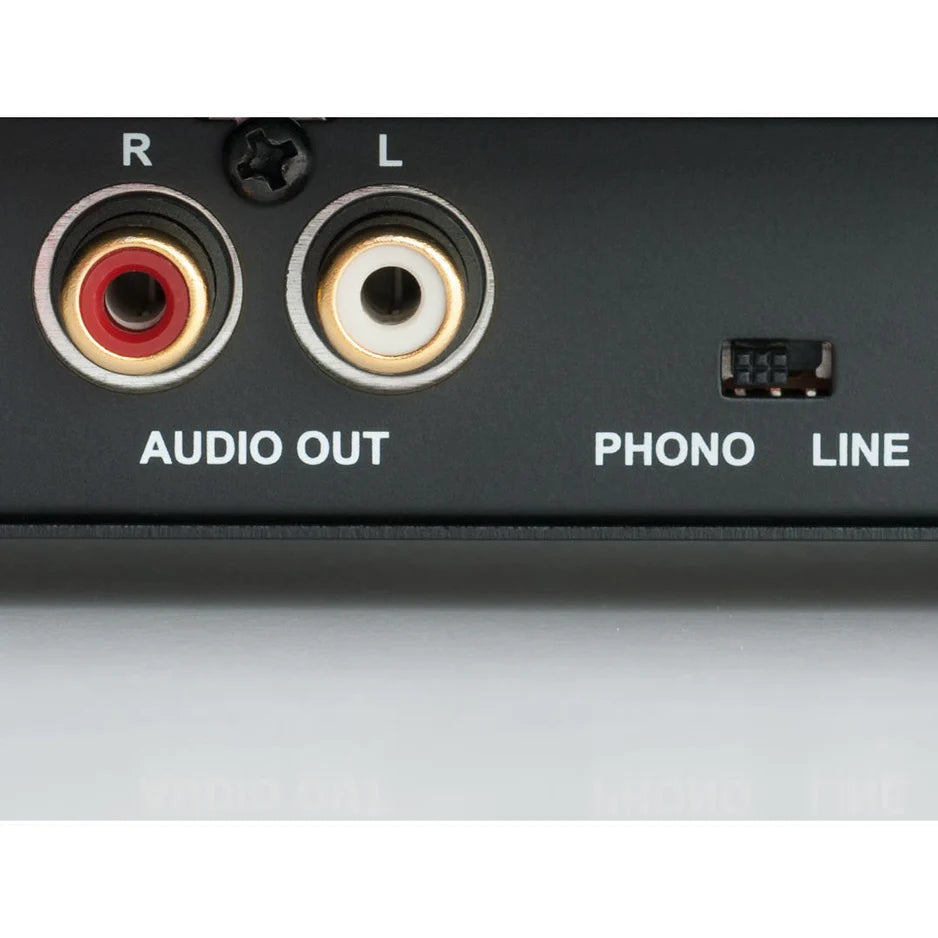

 Built-in Phono Preamplifier

A built-in phono preamplifier allows you to connect directly to your current system.

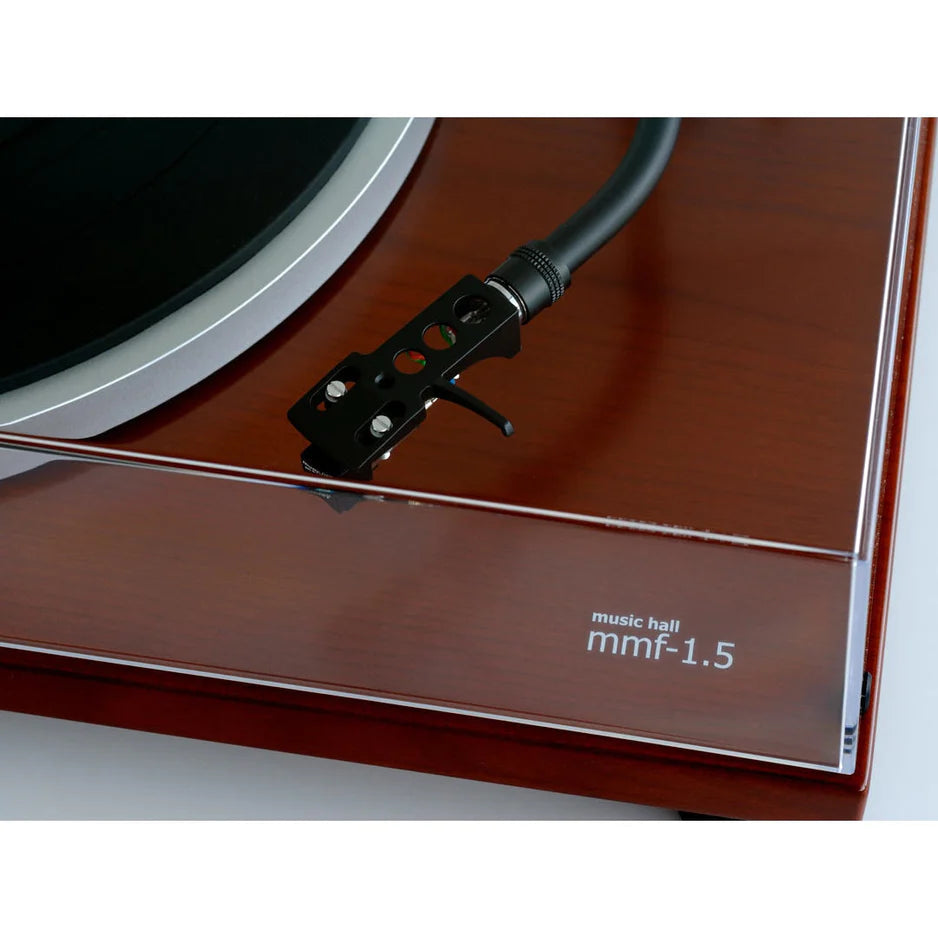

Dust Cover

The included hinged dust cover keeps your MMF-1.5 protected when not in use.

Product Features

• gorgeous real cherry wood veneer
• built-in phono pre-amplifier which is by-passable if plugging into an existing phono pre-amp
• S-shaped aluminum tonearm, 9″
• removable headshell for easy cartridge changing
• low noise belt-drive design
• stiff and solid MDF plinth
• separately isolated DC synchronous motor for superior speed stability
• three-speed motor provides 33⅓, 45, and 78 rpm
• properly aligned and mounted Music Hall Melody ($75 value) moving magnet cartridge
• adjustable electronic speed control
• special vibration damping feet
• high quality gold RCA connectors with detachable phono cable included
• full-size aluminum platter and special vibration damping platter mat
• worldwide compatibility
• excellent instruction manual
• dust cover and 45 rpm adaptor
• quick and easy to assemble

Technical Specifications

General

Power Supply
DC12V，2.0A universal power supply

Consumption
4W

Dimensions (W x D x H)
435 x 367 x 106 mm

Weight
5Kg

Turntable

Type
3 speed full manual

Motor
DC motor

Drive
Belt Drive

Turntable Platter
305 mm dia. aluminum die-cast

Speeds
33 1/3, 45, and 78rpm

Wow and Flutter
Typical: less than 0.1% WTD at 3KHz RMS (CD-4005)

Limit
Less than 0.15% WTD at 3KHz RMS (CD-4005)

Signal To Noise Ratio
more than 65dB (DIN-B) (SS-4242)

Speed Tolerance
3000Hz +/-1%(CD-4005)

Power Supply
DC12V, 2.0A Universal PSU

Power Consumption
4W

Cartridge

Included Cartridge
Music Hall Melody

Output Voltage
2.5mV +/- 3dB at 1KHz 3.54cm/sec

Channel Separation
measurement point 1 kHz over 18 dB

Channel Balance
25 dB or less at 1KHz

Frequency Response
measurement point 10KHz / 1KHz 0 +/- 3dB

Tracking Force
2.0 +/- 0.5 grams

Cartridge Type
Moving Magnet

Stylus
Diamond

Channel Separation
More than 15 dB at 1 kHz (CD-4005)

Channel Balance
Within 2.5 dB at 1KHz (CD-4005)

Phono Output Level
1.5~3.6 mV at 1KHz, 5cm/sec (CD-4005)

Line Output
90-216 mV at 1KHz KHz, 5 cm/sec (CD-4005)

RIAA
20Hz~20KHz: +1/-3 dB

Tonearm

Tonearm Type
static balanced S-shaped

Effective arm length
230 mm

Overhang
15 mm

Offset angle
22 degrees

Tracking error angle
3 degrees or less

Rotation Movability
(1-rotation 4g)

Applicable Cartridge Weight
5~8.5g (including headshell 15~18.5g)

Anti-Skating Adjustment Range
0~3g

Arm Lifter
Oil damper type

Height Of Stylus
8~10.5mm

Lifter Descent Time
1.5~3 sec (stylus pressure: 2 g)

Horizontal Sensitivity
less than 0.2 g

Vertical Sensitivity
less than 0.2 g



*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change from Manufacturer without notice.

E&OE
