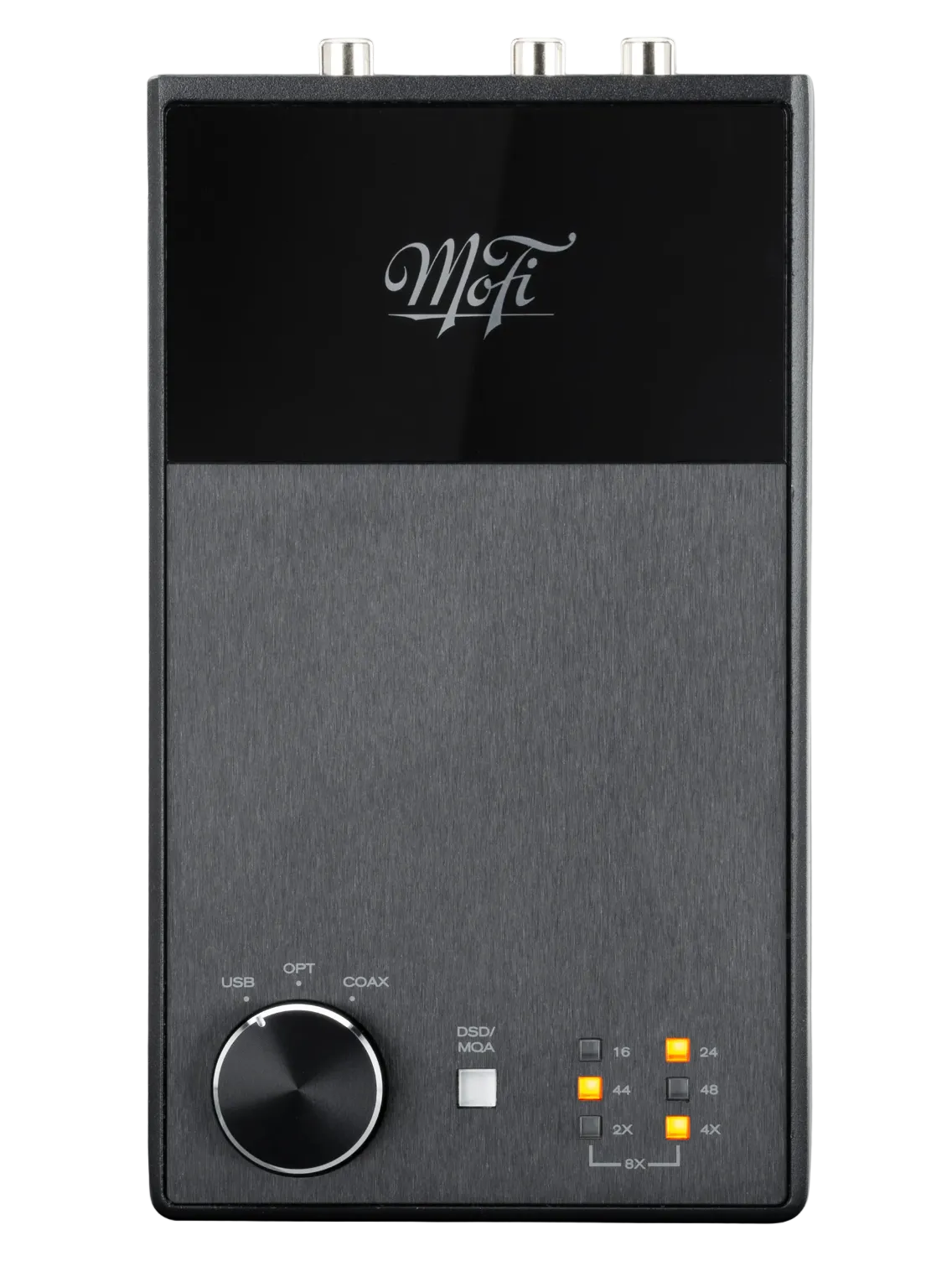

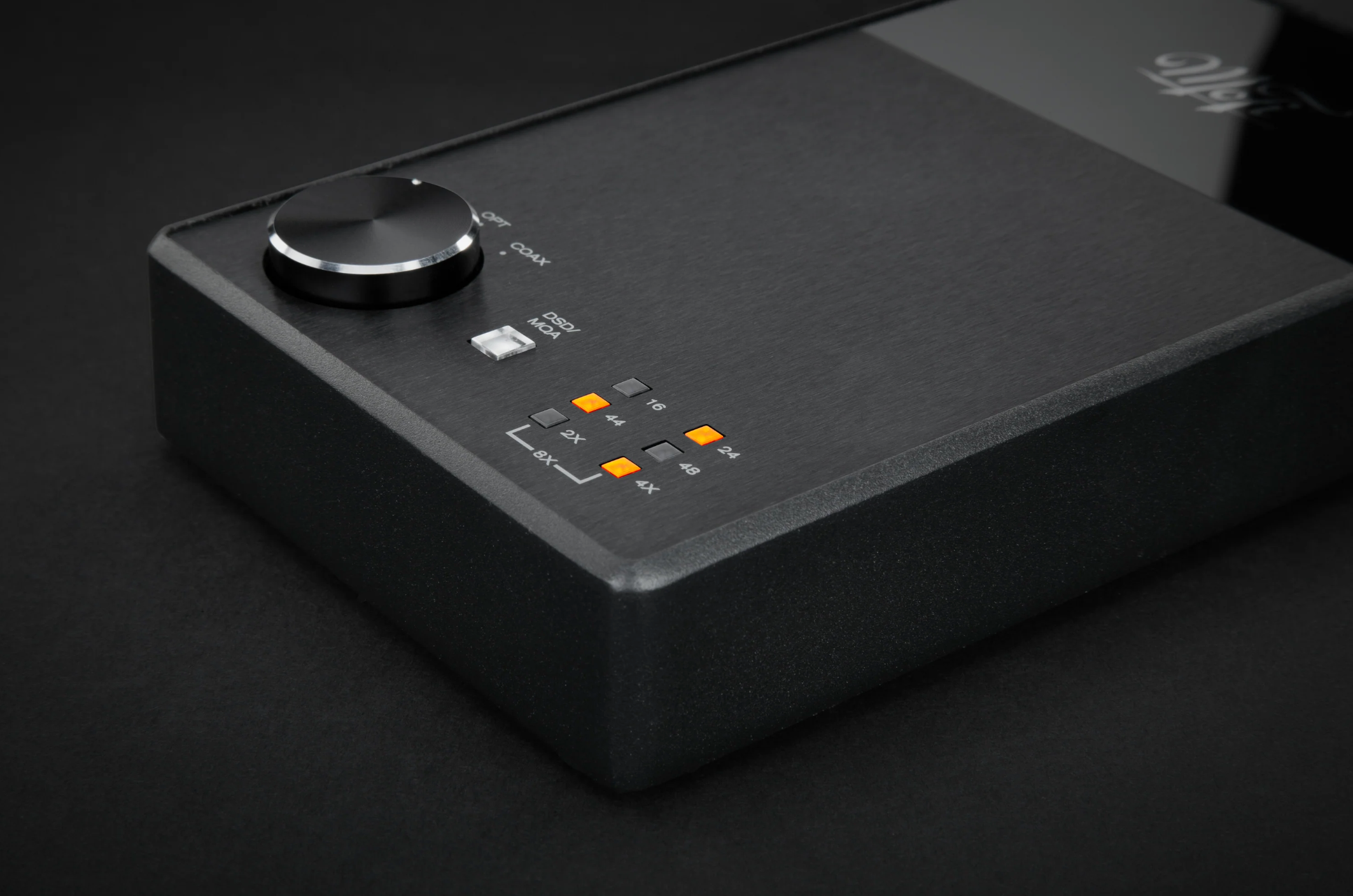

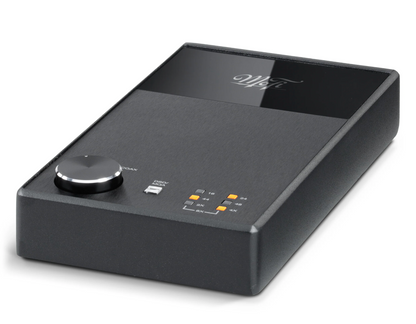

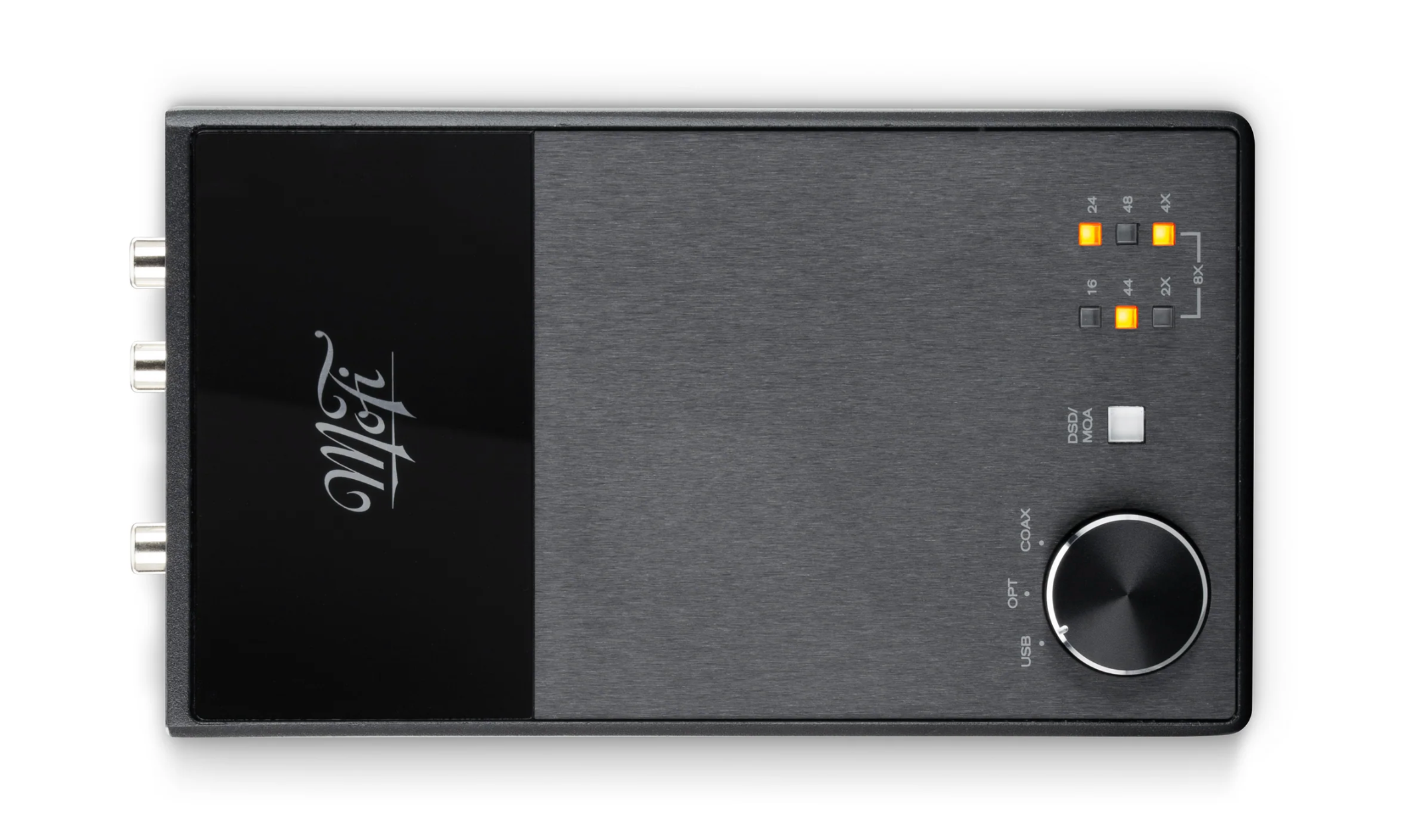

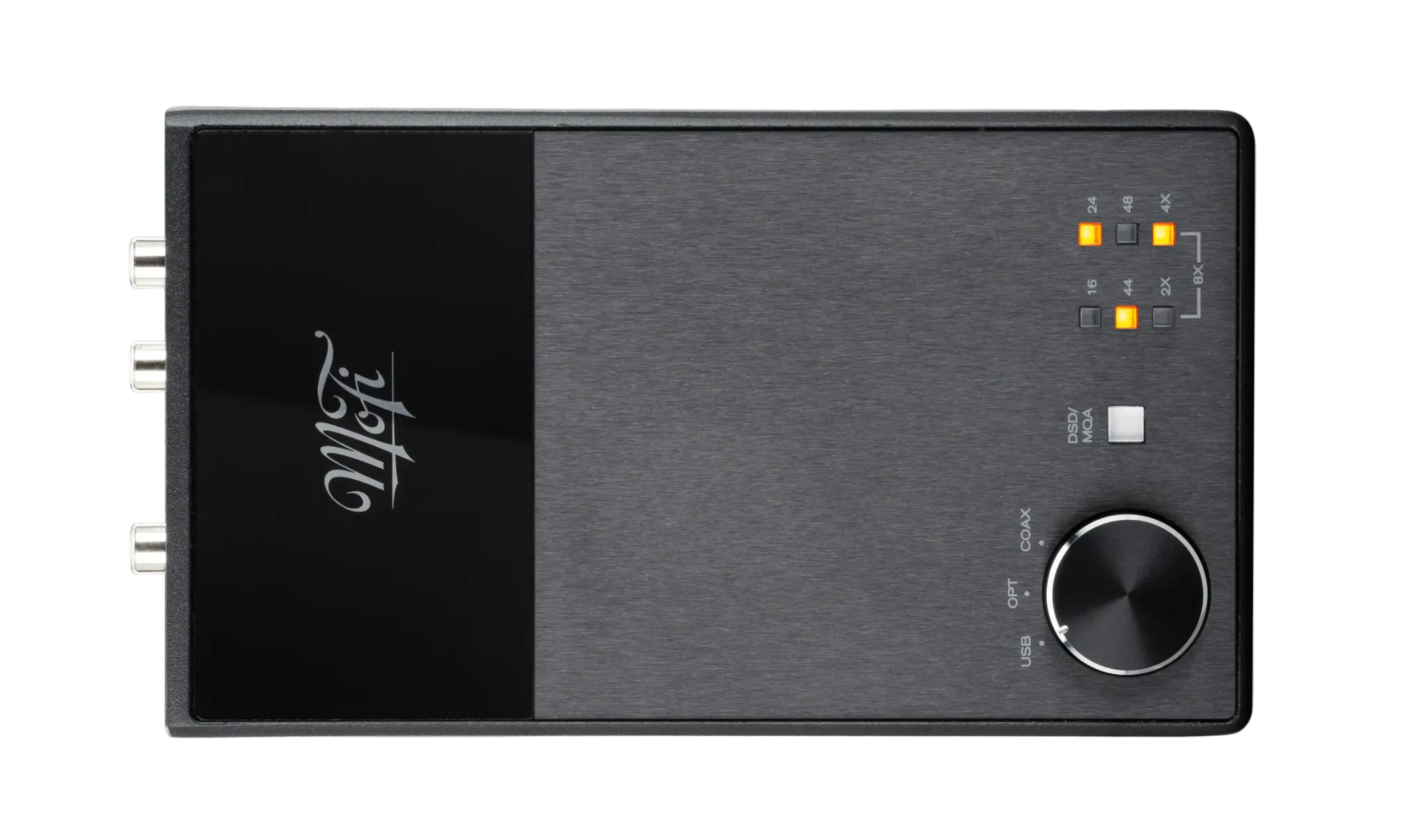

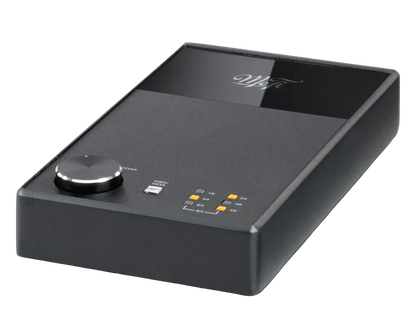

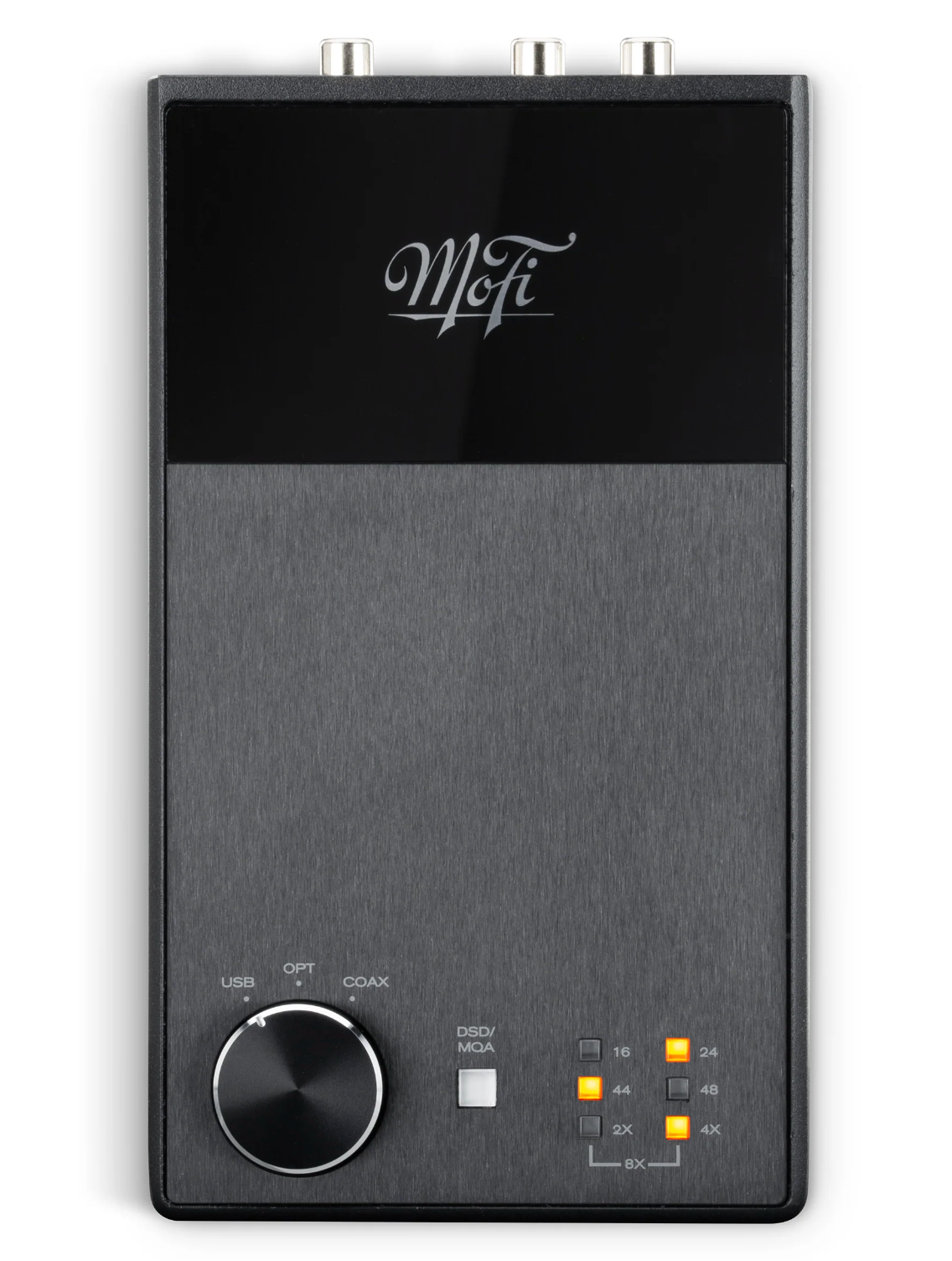

Mobile Fidelity StudioDAC Digital to Analog Converter
"WE ASSURE YOU THAT ALL OUR PRODUCTS ARE 100% GENUINE AND COME WITH FULL LOCAL WARRANTY"
Introducing the StudioDAC
Seamless Integration at its Best
Designed in collaboration with Mytek Audio engineer Michal Jurewicz, made in the USA, and voiced by MoFi Electronics. The StudioDAC supports DSD, DXD, and full MQA decoding + rendering. StudioDAC leans on a low-noise clock generator and Apodizing Filter to recreate music with remarkable openess and purity. Partner with a streamer or computer via USB 2.0, S/PDIF, or Toslink and see the signals incoming format and resolution with the LED indicators to confirm bit-perfect playback.
The Essence of High Fidelity Audio
The StudioDAC is the embodiment of meticulous craftsmanship and uncompromised audio quality. With its multiple input options including USB 2.0, S/PDIF, and Toslink, the StudioDAC seamlessly integrates with various audio sources. The full MQA decoding and rendering capability ensures an authentic listening experience, especially for MQA-encoded tracks.
Advanced Technology for Pure Sound
At the heart of the StudioDAC is a low-noise precision clock generator, minimising jitter to deliver an unadulterated audio experience. The inclusion of an Apodizing Filter eradicates sharp-edged high frequencies and pre-ringing artifacts, producing a natural sound that closely mirrors the original analog signal. LED indicators provide intuitive feedback on the audio format and resolution, ensuring bit-perfect playback. Additionally, an outboard power supply is included, enhancing low-noise playback and offering opportunities for future upgrades.
Product Features
- DSD, DXD, and 32-bit/384 PCM playback
- Custom Designed and Manufactured in the USA
- USB2.0, S/PDIF, and Toslink, inputs
- MQA Decoder
- Outboard power supply
Technical Specifications

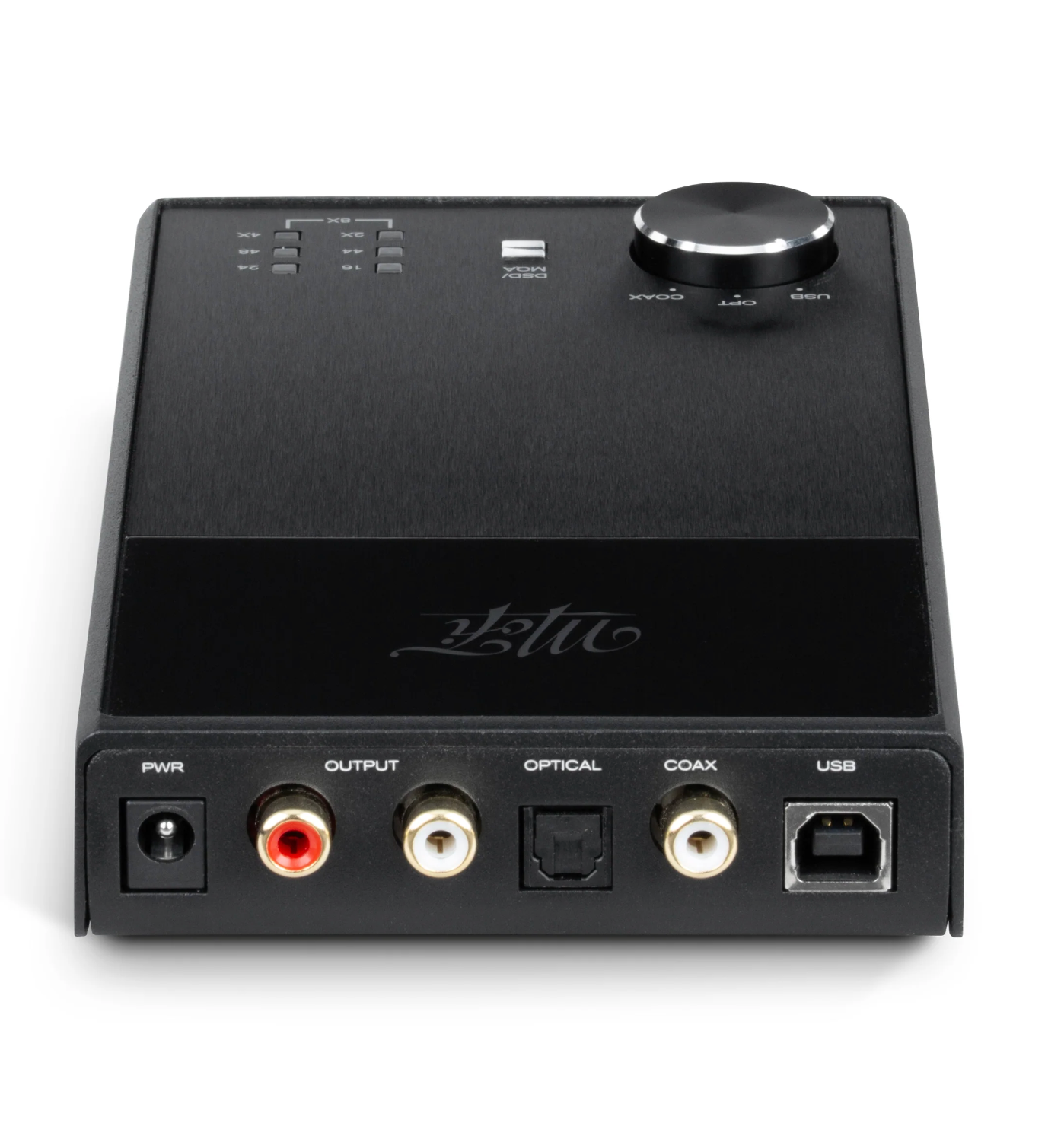

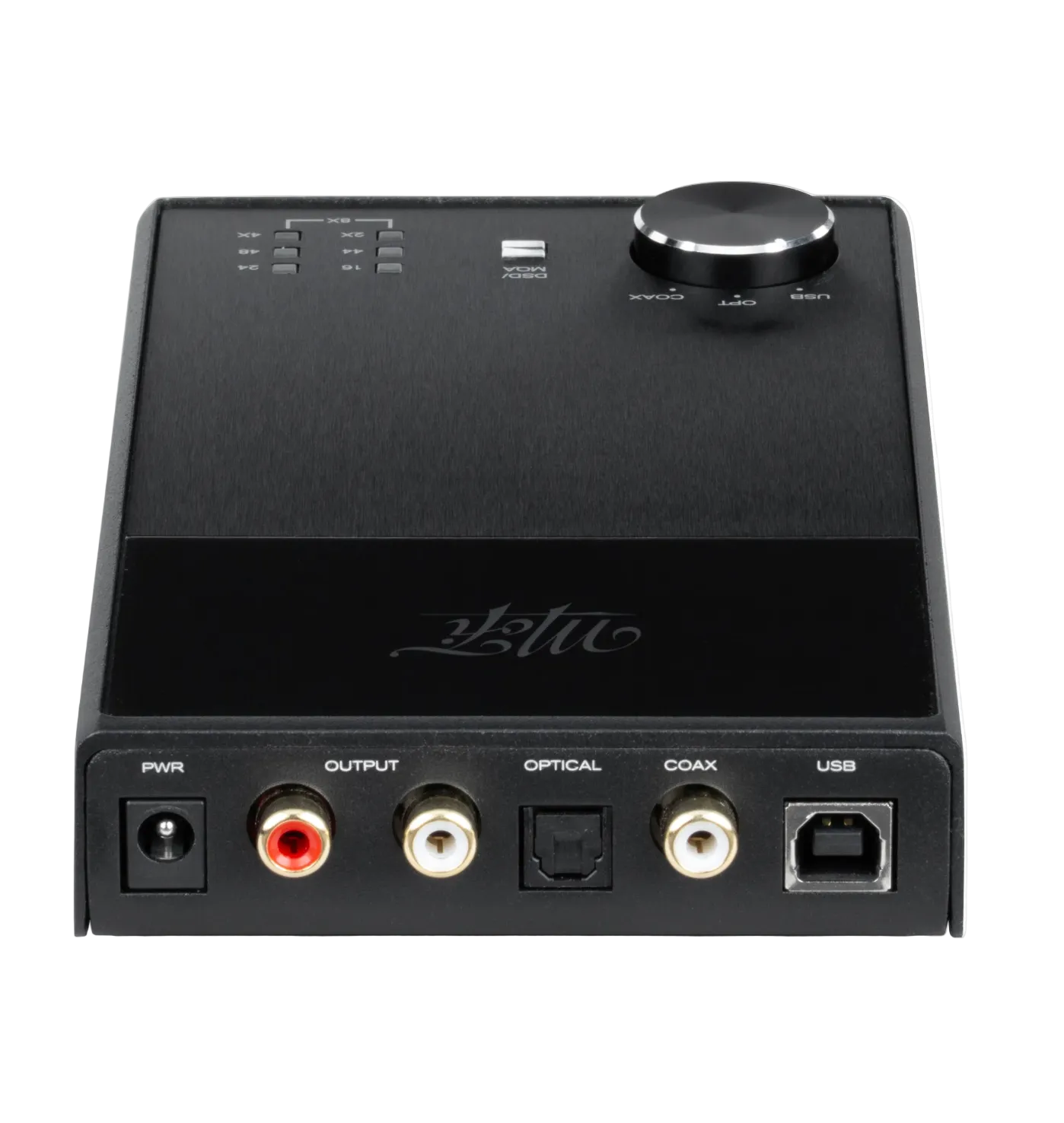

1x Coax (S/PDIF), 1x Optical (TOSlink), USB B
D/A Converter
ESS9038Q2M
Sampling Rates
32/44.1/48/88.2/96/176.2/192/352.8/384 kHz
DSD Support (USB)
DSD64, DSD128
MQA Support
Full MQA decode + render by hardware
Bit Depth (USB)
16-32 bits
Bit Depth (COAX, Toslink)
16-24 bits
Frequency Response
20Hz - 20kHz +/- 0.2db
Analog Out
1x Fixed Level Out (RCA)
Output Voltage
2.5 VRMS @ 0dbfs
THD+N
<0.002% 20-20Khz
Dynamic Range
115dB (A-weighted)
SNR
>114dB (A-weighted)
Crosstalk @ 10KHZ
-110dB
Output Impedance
75 Ohms (unbalanced)
Linearity
<+/-0.25db @ -110db
Power Supply (external 100-240VAC)
+12 Vdc 3.3 Amp centre positive
Output Connector (external 100-240VAC)
5.5/2.5mm barrel connector
*This information has been obtained from Manufacturers website. We advice that Features & Specifications are subject change from Manufacturer without notice.
E&OE
