Denon DL-A110 Moving Coil Cartridge

110 Years of Defining Audio Excellence

The limited edition DL-A110 MC phono cartridge features a perfect reproduction of the original Denon headshell, designed to meet the extremely high standards of the Japan Broadcasting Corporation (NHK), in their Anniversary Series silver-graphite colour.

Denon has been upgrading your expectations in the audio and video industry since 1910 and we are proud to celebrate this great achievement with the DL-A110 and its partner products, the PMA-A110 and DCD-A110.

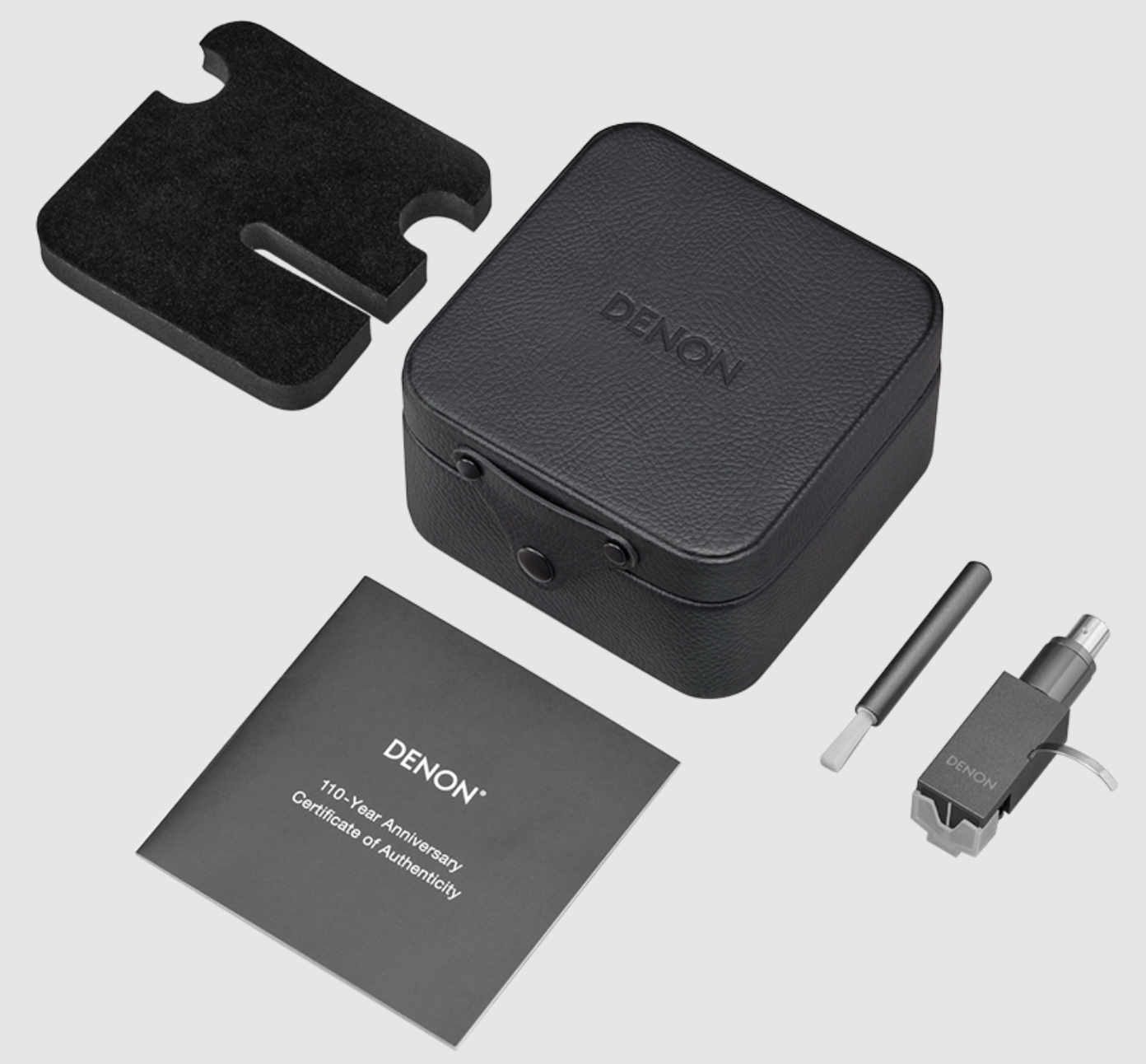

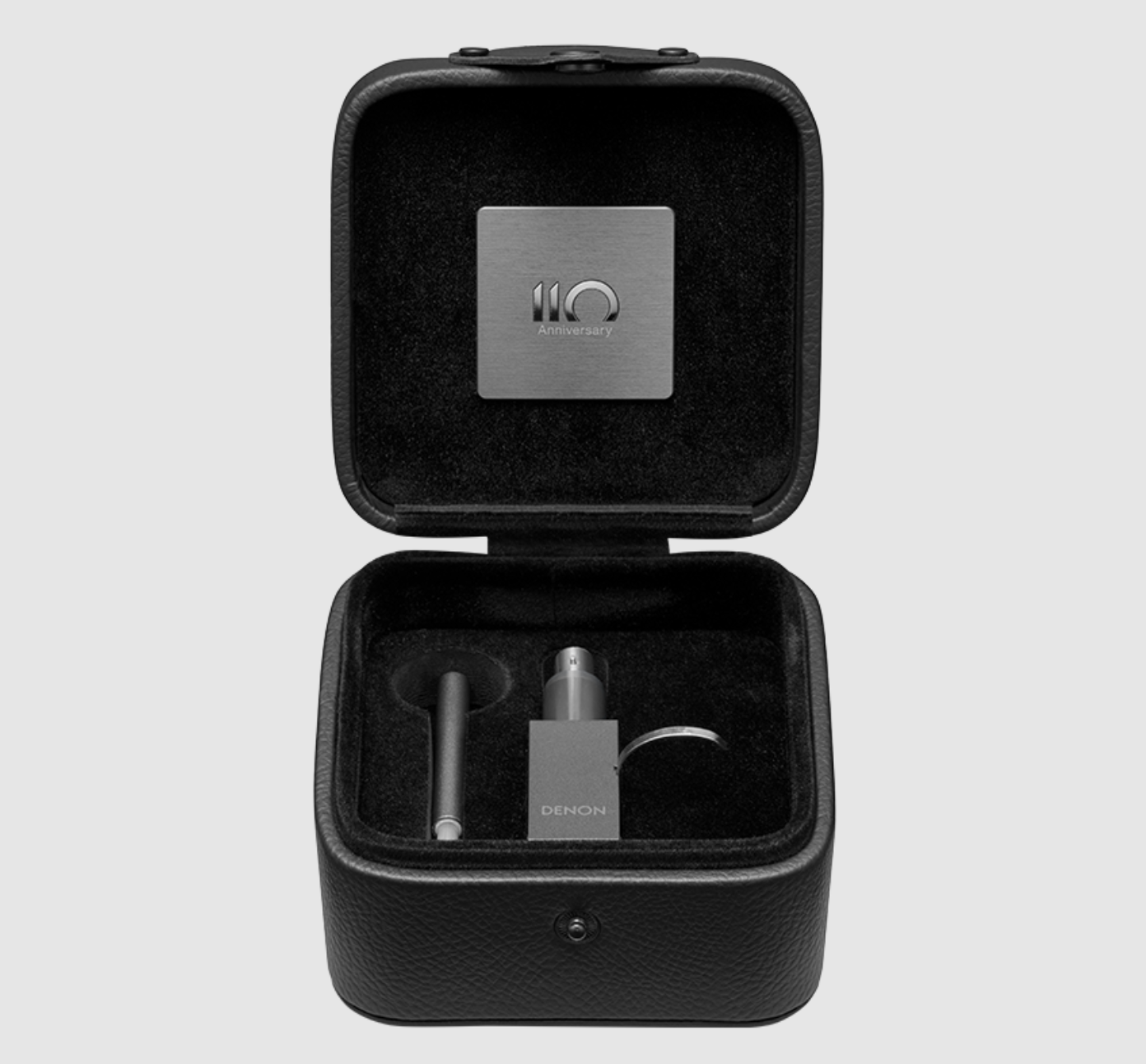

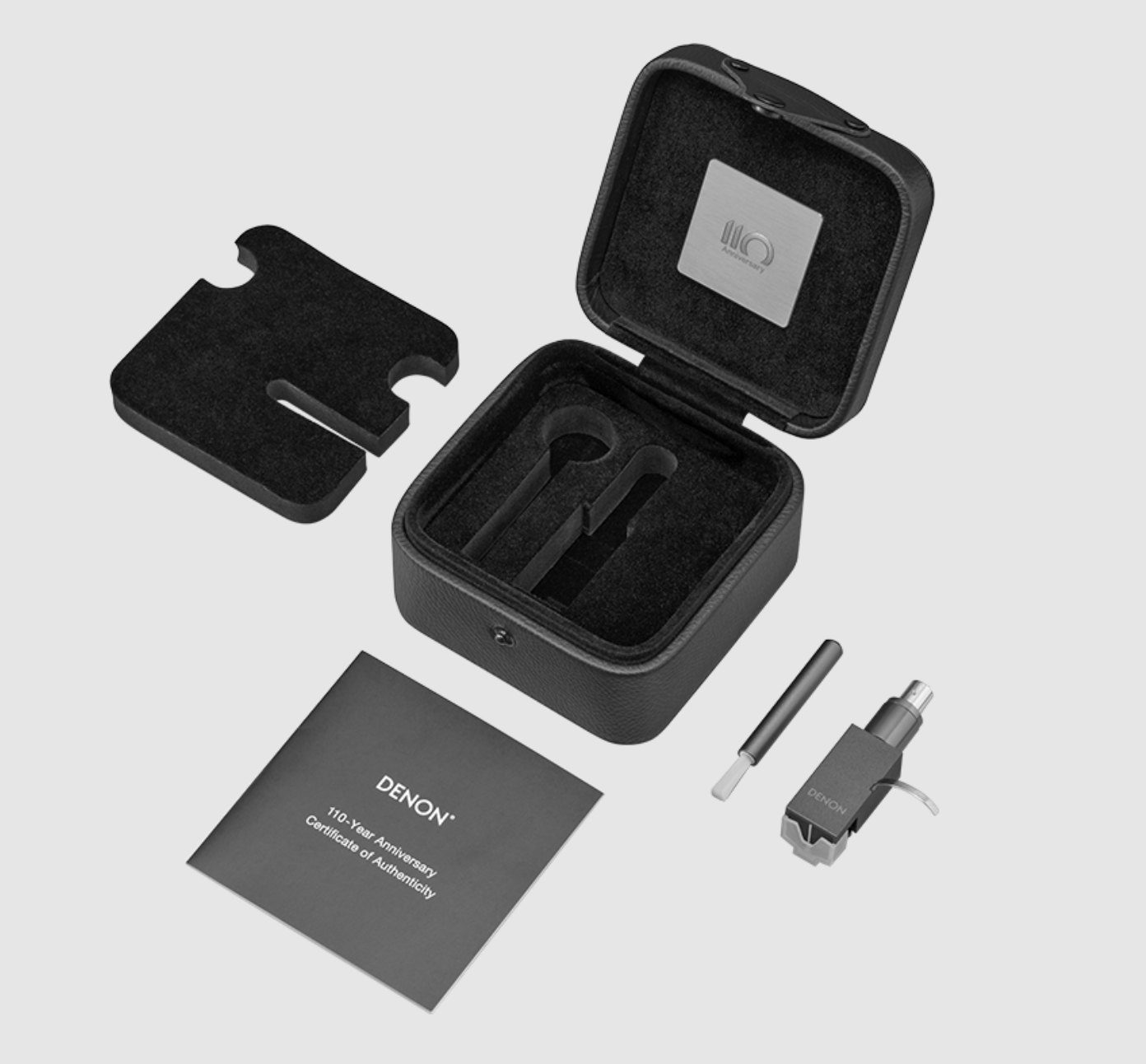

To celebrate this significant milestone, the DL-A110 comes with a commemorative carrying case adorned with a special Denon 110 Anniversary metal inlay logo.

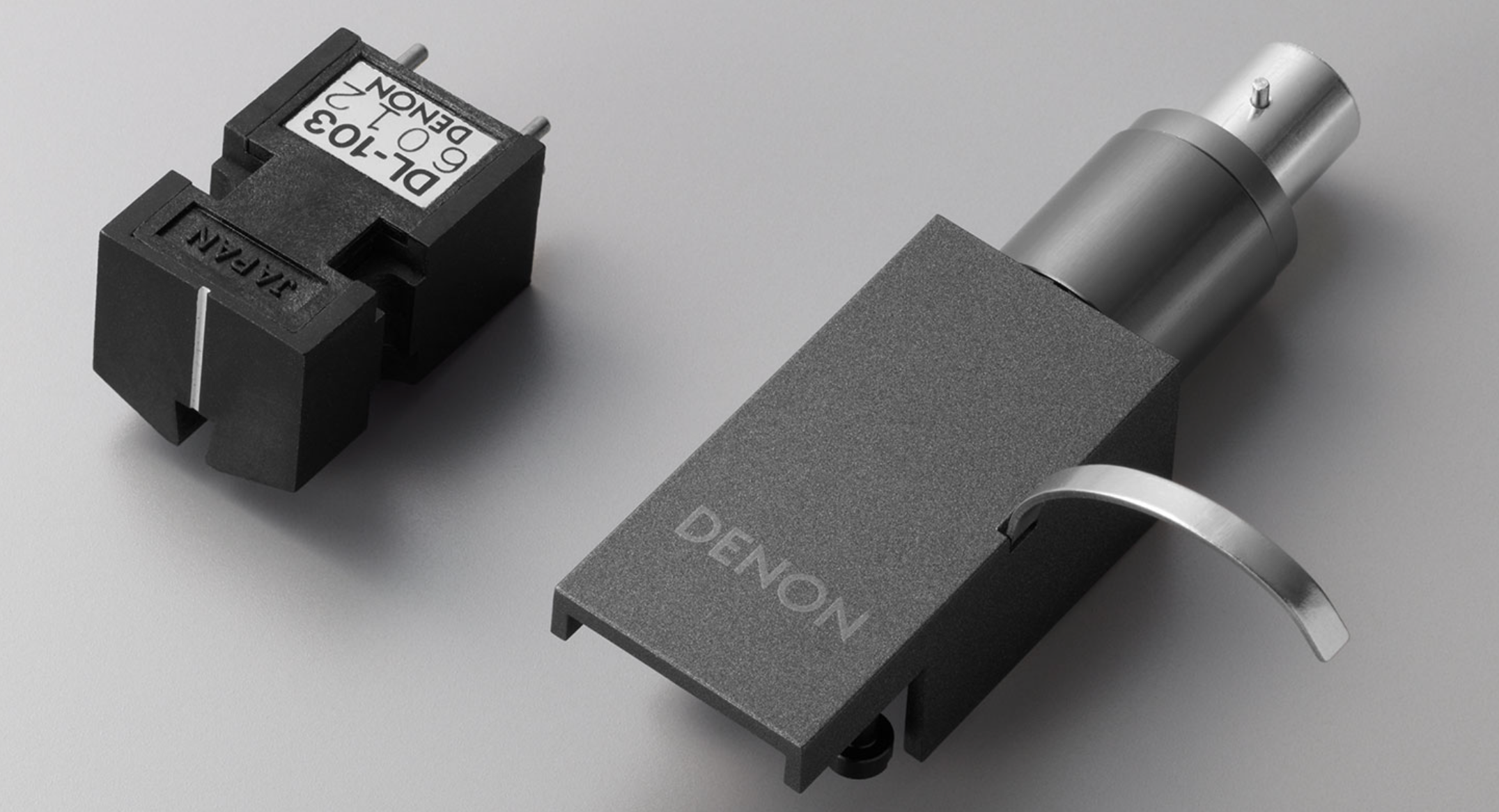

Original Denon Headshell Reproduced in Stylish Anniversary Design

True to the original headshell developed in the 1960s for radio broadcast, the DL-A110 silver-graphite headshell is an exact reproduction of the original design.

The lightweight DL-A110 headshell ensures the cartridge is held securely and perfectly aligned preventing any unwanted vibrations and leading to a detailed and clean audio reproduction with extended low frequency performance.

Defining audio excellence since 1910

The stylish, premium silver-graphite colour perfectly complements companion pieces in the Denon 110-year anniversary line.

Trusted guarantee

The DL-A110 MC phono cartridge includes a Certificate of Authenticity stamped with the approval of Denon’s Head Engineer and a premium, 5-year out-of-the-box warranty (excluding stylus).

Specially made tonearm interface

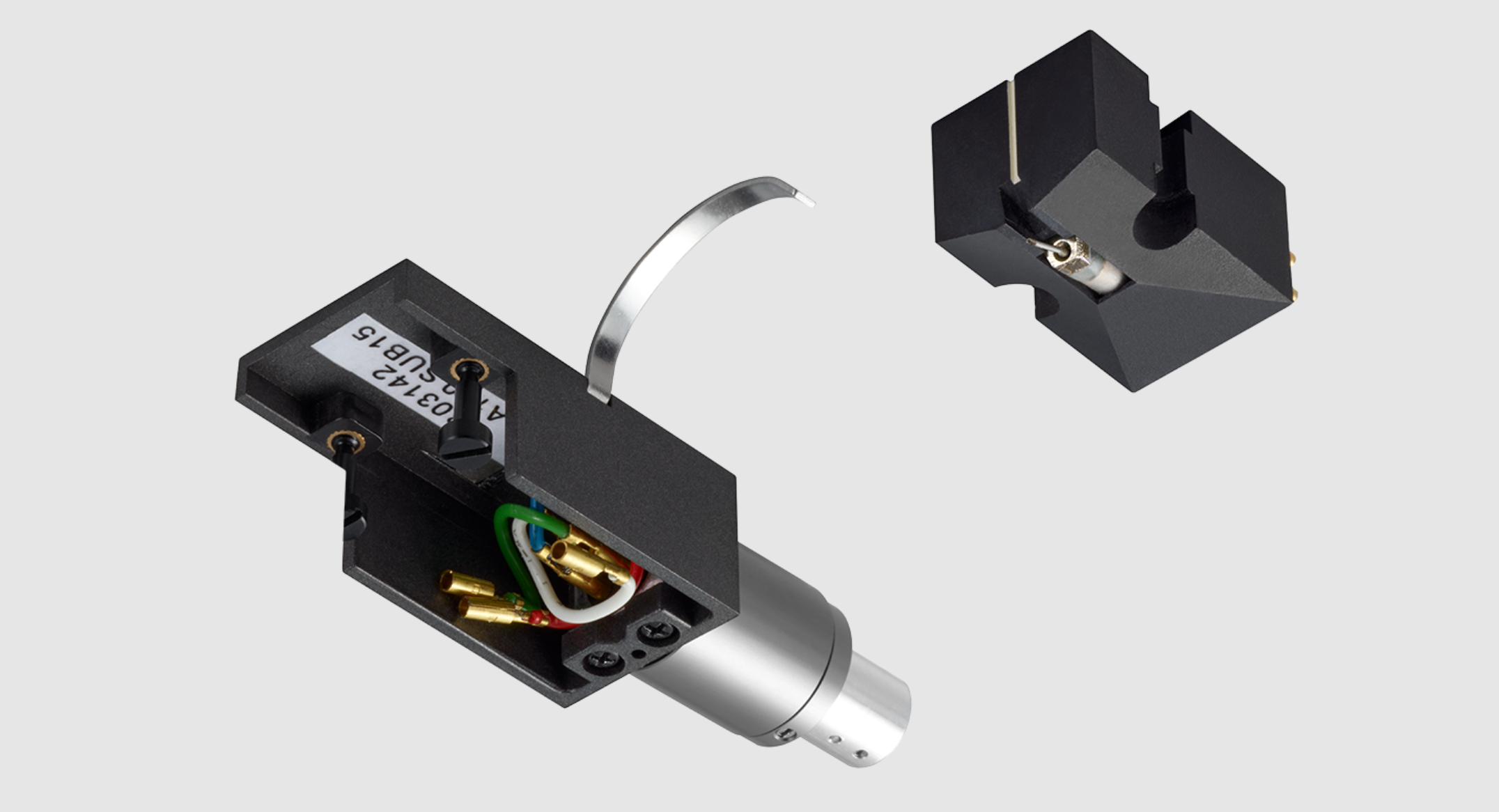

The DL-A110 is equipped with a bayonet connector also known as the SME tonearm interface with gold-plated connectors for easy installation and high reliability.

The most refined vinyl experience

Wide playback band (especially in the high range), flat output voltage, and frequency characteristics.

Tested to Denon’s standards

All single cartridges will come with a measurement protocol to confirm frequency response is according to the standards set.

Excellent channel separation

20dB or more at 100-5000Hz and 15dB or more at 10kHz.

Enjoy your vinyl, whether stereo or mono

The DL-A110 lets you masterfully reproduce both LP stereo records and LP mono records.

Technical Specifications

Type
MC

Frequency Range
20 Hz - 45 kHz

Output Voltage
0.25mV

Output Impedance
14 ohms

Sensitivity
-66dB ±2dB (0dB=0,775V, 5cm/s lateral 1kHz

Sensitivity difference
Within 2dB at 50-5kHz

Frequency response
10 Hz – 45kHz

Electrical impedance
40Ω ± 20%

Stylus pressure
2.5 ± 0.3 gr

Vertical tracking angle
15-18 degree

Weight
8.5 g

Warranty
5-year out-of-box warranty and Certificate of Authenticity

*please note that this does not include the stylus, which is sold separately
