Chord C-View HDMI 2.1 Cable

C-View HDMI 2.1 Cable

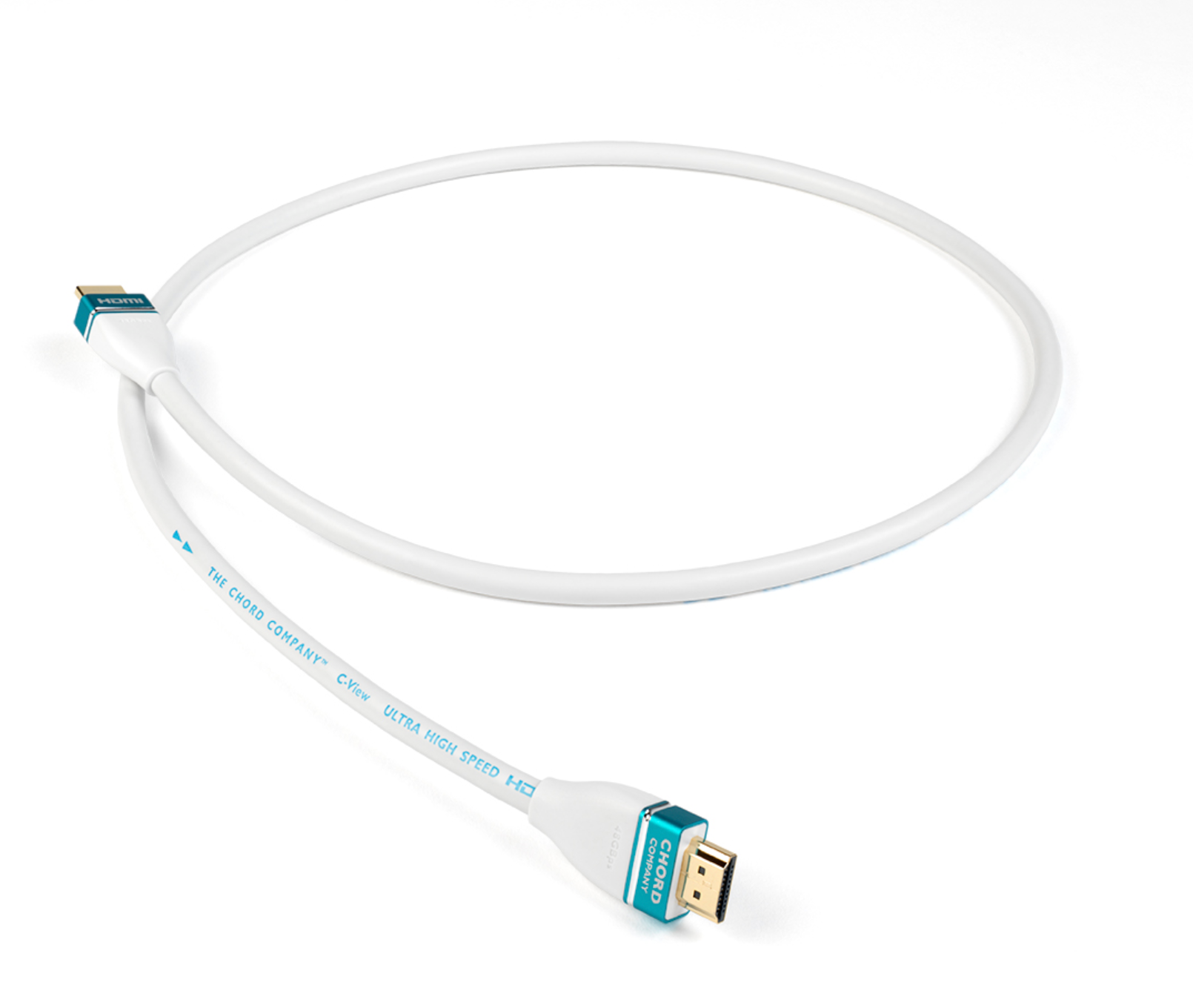

Chord Company C-view HDMI cable is a cost-effective, high-performance display connection featuring heavily-shielded copper conductors and is available in lengths of 0.75m, 1m, 1.5m, 2m and 3m and .75m, 1.5m and 3m installer packs.

C-view HDMI benefits from a 48GBps bandwidth with a resolution of 8k at 60hz or 4k at 120hz. It supports Dynamic HDR, HDCP2.3, eARC, 3D and all HDMI audio formats.

Chord Company C-view HDMI is a certified Ultra High Speed HDMI cable.

The HDMI performance standard is one of the fastest-moving in our industry. HDMI (High Definition Multimedia Interface) cables carry high-frequency signals alongside a 5-volt DC electric supply. These complex multi-purpose interconnects tend to be longer than most other cables in a system, with the possible exception of speaker cables.

Today’s high-technology house contains many devices producing high-frequency (HF) noise. Cables often act as aerials picking up this noise. Unfortunately, the longer the cable the better aerial it becomes. These unwanted high-frequency signals can penetrate unprotected cables and end up on the signal earth. To preserve these delicate signals, all Chord Company HDMI cables feature high-efficiency HF screening to minimise the noise pick-up.

Technical Specification

Bandwidth
Ultra high-speed 48GBps+

Resolution
8K/60Hz, 4K/120Hz

Dynamic range
Dynamic HDR

Operating distance
up to 3m

Primary conductors
28AWG copper

Insulation
Foam-PE

Shielding
Twin AL foil

Cable Jacket
PVC

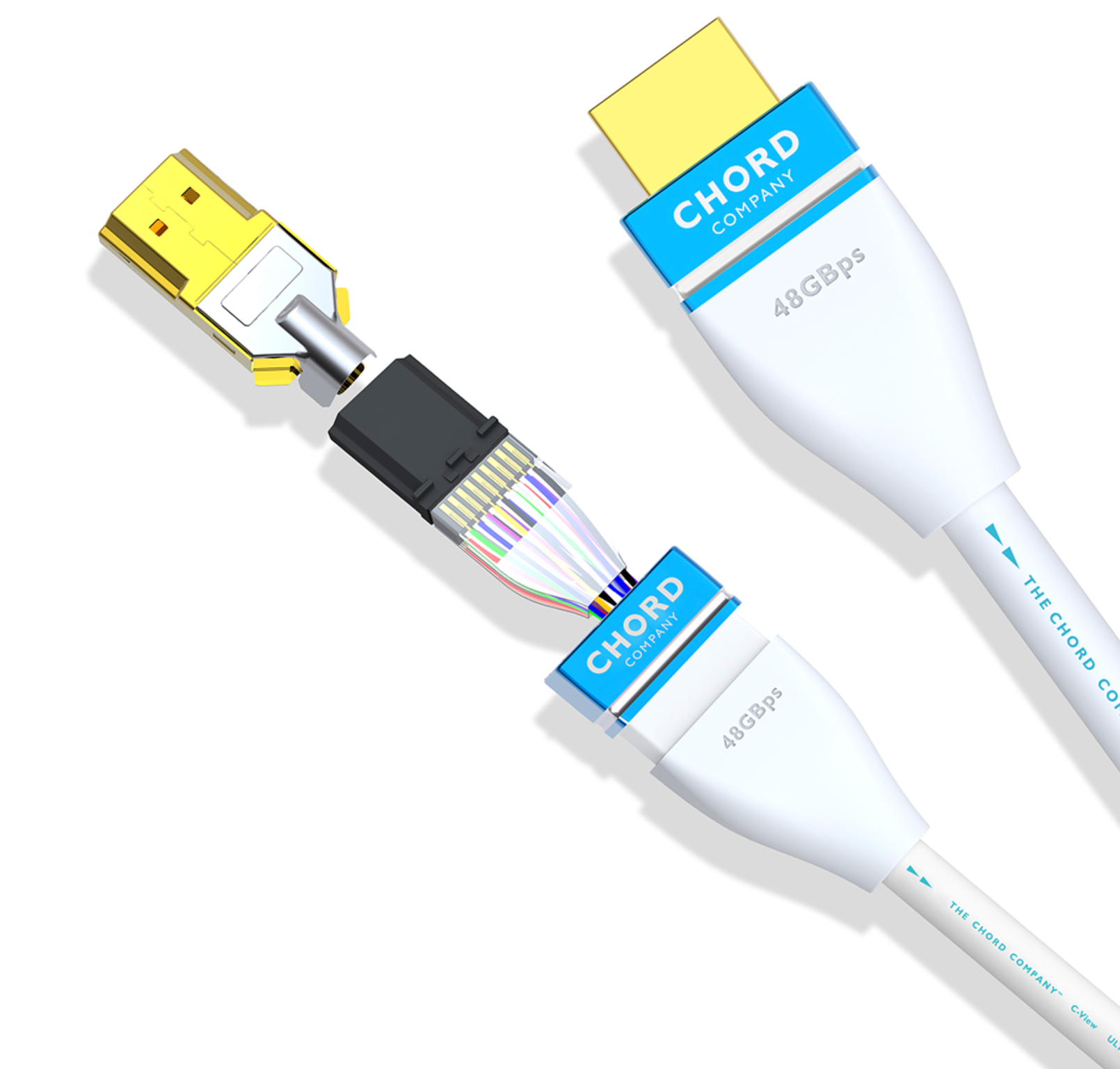

HDMI connector
shell Gold-plated copper

HDMI connector
pins 19-pin gold-plated copper

Termination
Hand soldering

HDMI connector
backshell PVC

Cable diameter
7mm

Available in lengths
0.75m, 1m, 1.5m, 2m and 3m.

*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change from Manufacturer without notice.

E&OE
