Canor PH 1.10 Vacuum Tube Phono Preamplifier

$10,995.00 AUD

Sale Call For Availability

GSTincluded. Shipping Policy

AFTER PAY
ZIP PAY
LAY BUY

755 NICHOLSON ST CARLTON NORTH
Full Aussie Manufact. Warranty
Free Shipping over $500

Colour Black Silver

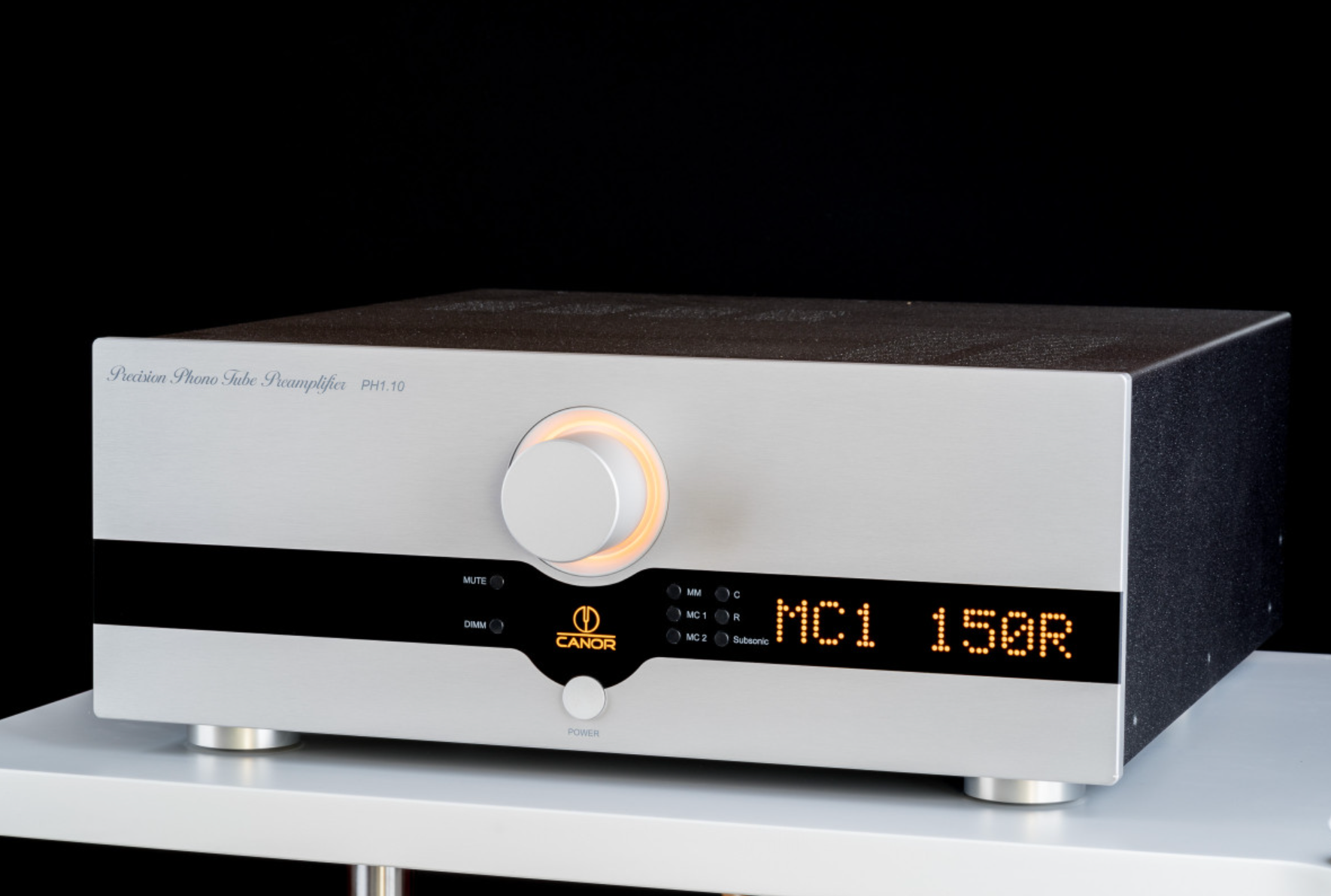

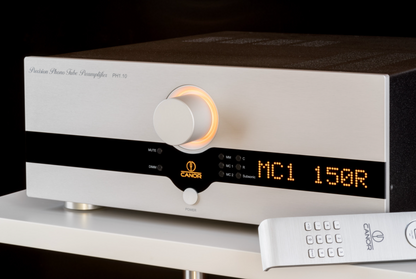

Introducing the stunning PH 1.10 from Canor

The all-tube turntable preamp for both MM & MC phono cartridges

Highlights

True balanced XLR output. The circuitry of PH 1.10 is a true differential
An all-tube turntable preamplifier for both MM and MC phono cartridge
Absolute selection and tubes matching with above-average parameters

For both MM and MC

Canor PH 1.10 phono preamplifier was designed for both MM and MC cartridges (they can be connected at the same time without any interference). The front panel’s buttons provide easy selection and set-up of the MM and MC.

CMT ™ technology

The use of CMT ™ technology (CANOR ® PCB Milling Technology) was a matter of course in the design of Canor PH 1.10 printed circuit boards.
Because very small signal amplitudes are processed in the turntable preamplifier, this technology has been even more beneficial than in our other products.

Product features

an all-tube turntable preamplifier for both MM and MC phono cartridges
nine tubes, one vacuum tube out of them used to rectify anode voltage
wiring circuitry without any global feedback
PCB’s utilise our premium CMT ™ technology
absolute selection and tubes matching with above-average parameters
vacuum-impregnated transformer core
transformer potted in a special anti-vibration compound
Canor only use high-quality polypropylene capacitors in the signal path
if a turntable is fitted with two tonearms, one having MM phono cartridge installed and the other MC, both can be connected simultaneously without mutually affecting each other
high variability of gain settings, resistances and capacitances settings for all types of phono cartridges
a high-quality step-up Lundahl transformer for MC phono cartridges

Technical Specifications

Load capacity MM / Gain
50, 150, 270, 370, 520, 620, 740, 840 pF / Gain: 46 dB

Input impedance MC1 / Gain
10, 20, 40, 80, 150, 300, 600, 1.200 Ω / Gain: 70 dB

Input impedance MC2 / Gain
2, 5, 10, 20, 40, 80, 150, 300 Ω / Gain: 76 dB

Output impedance
< 250 Ω

Inputs
RCA -> MM / RCA -> MC

Outputs
RCA / XLR

Total Harmonic Distortion
MM / MC <0,1% / 1 VRMS

Subsonic filter
18 dB / Octave

RIAA accuracy
0.3 dB / 20 Hz – 20 kHz

Signal-to-noise ratio MM
< 72 dBV (87 dBV - IEC - A)

Signal-to-noise ratio MC
< 72 dBV (87 dBV - IEC - A)

Tube Complement
8 x 6922EH
1 x 6CA4EH

Power
230 V / 50 Hz / 70 VA

Dimensions (w x h x d)
435 x 170 x 485 mm

Weight (net)
17 kg

*This information has been obtained from Manufacturers website. We advise that Features & Specifications are subject change from Manufacturer without notice.

E&OE
