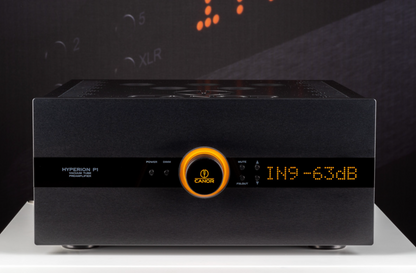

  • Canor Hyperion P1 Vacuum Tube Preamplifier in black. Front of unit

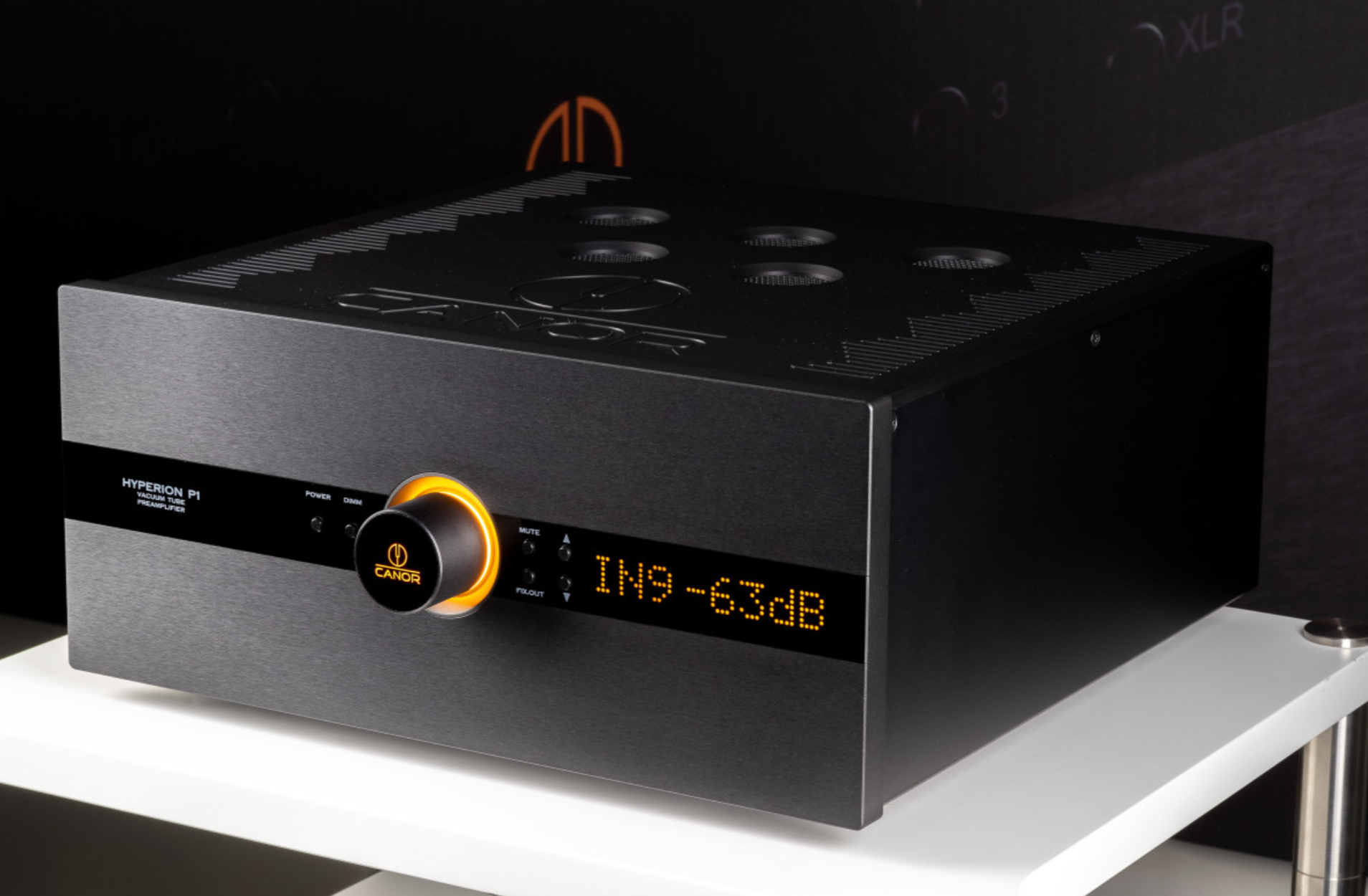

  • Canor Hyperion P1 Vacuum Tube Preamplifier in black, on an angle

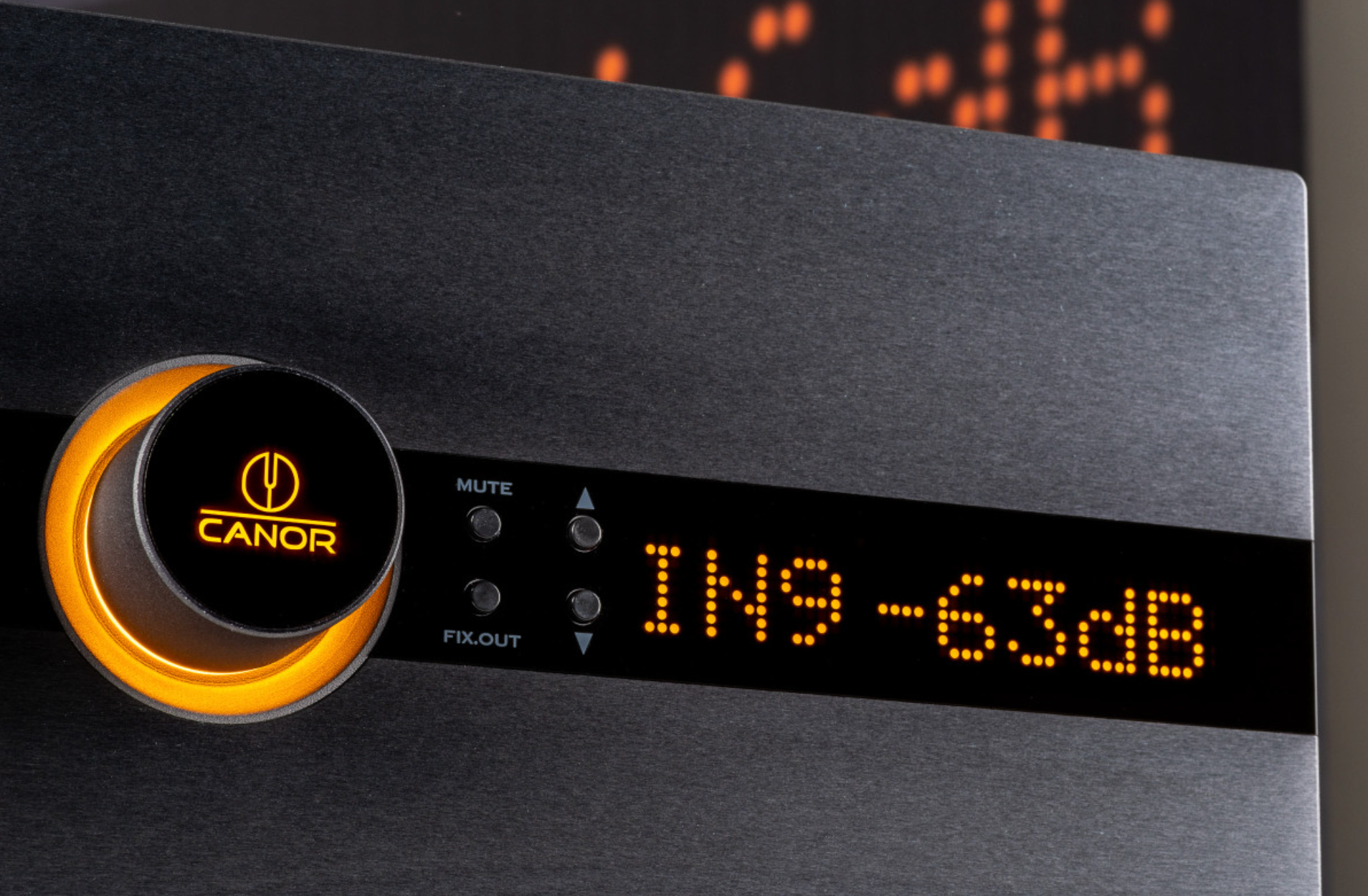

  • Canor Hyperion P1 Vacuum Tube Preamplifier in black, closeup

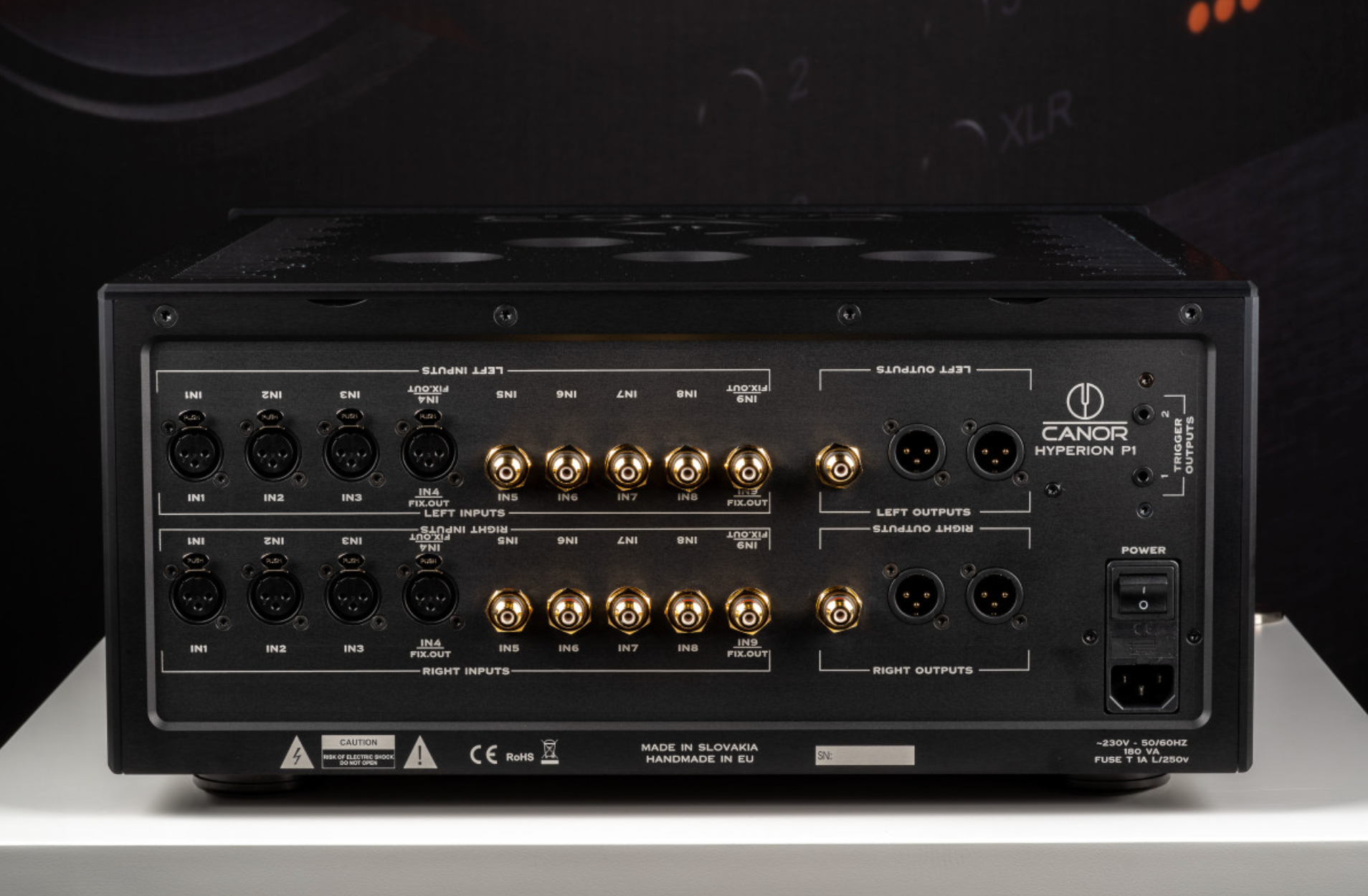

  • Canor Hyperion P1 Vacuum Tube Preamplifier in black. Back of unit

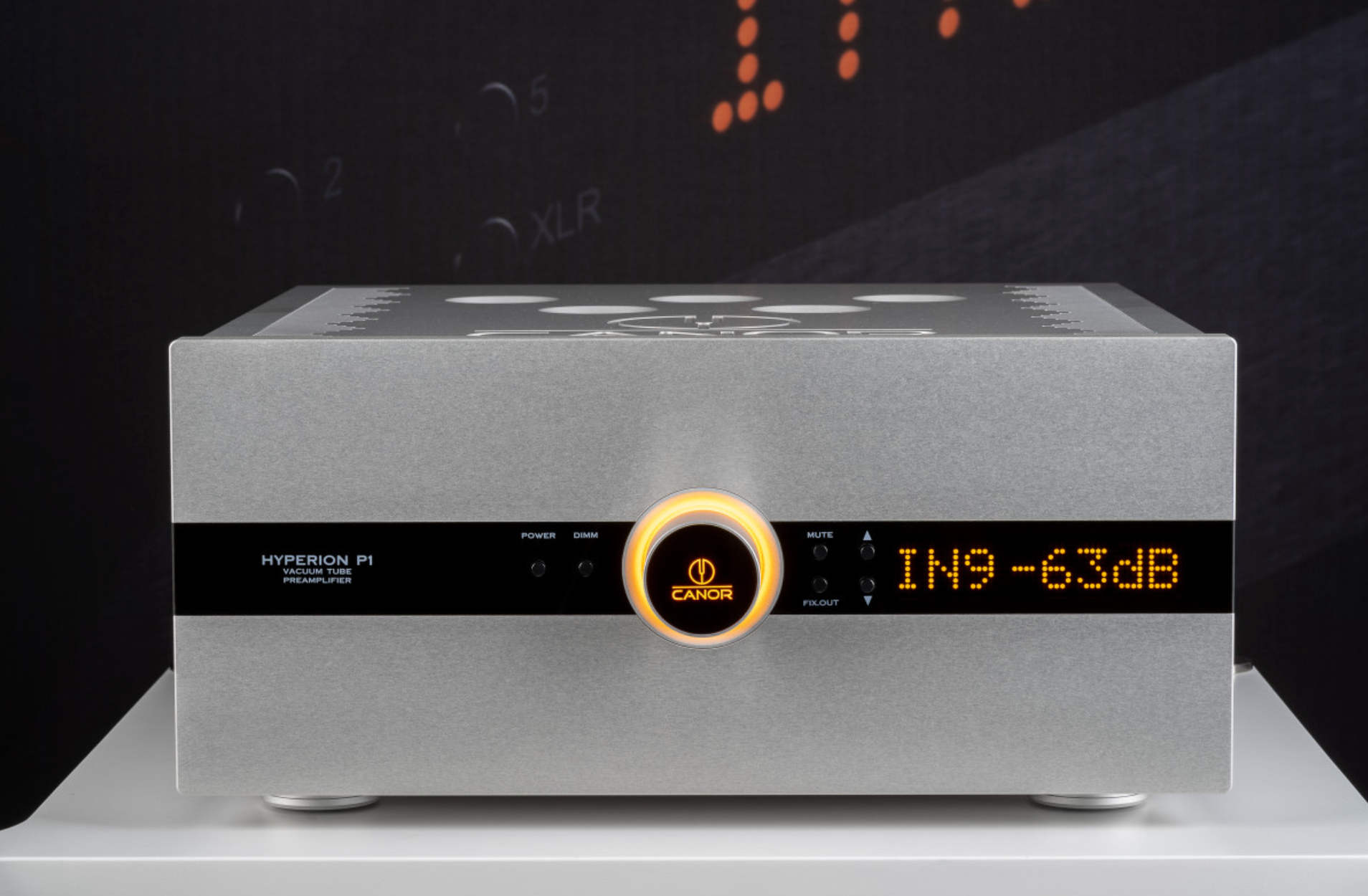

  • Canor Hyperion P1 Vacuum Tube Preamplifier in Silver. Front of unit

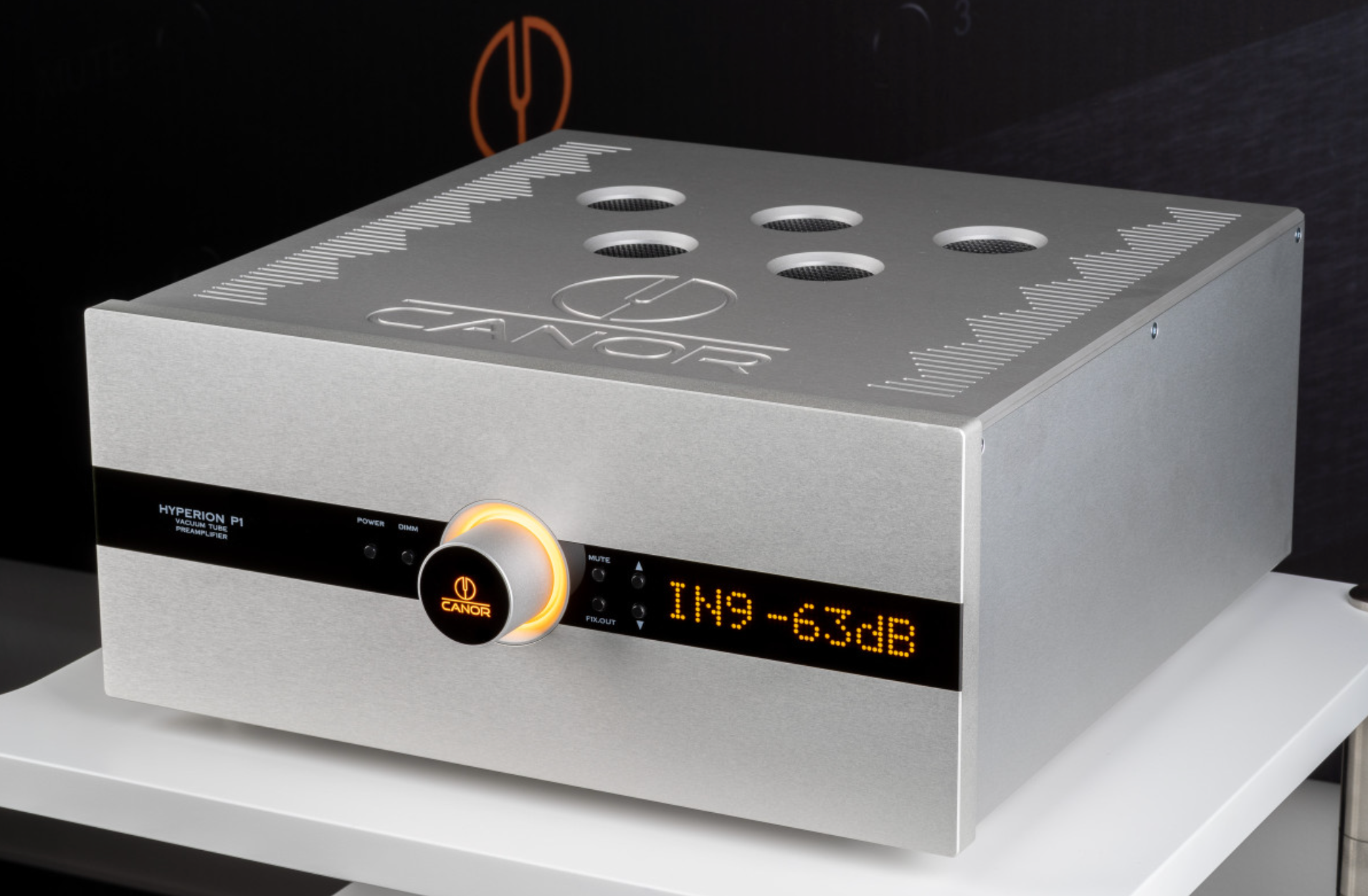

  • Canor Hyperion P1 Vacuum Tube Preamplifier in Silver, on an angle

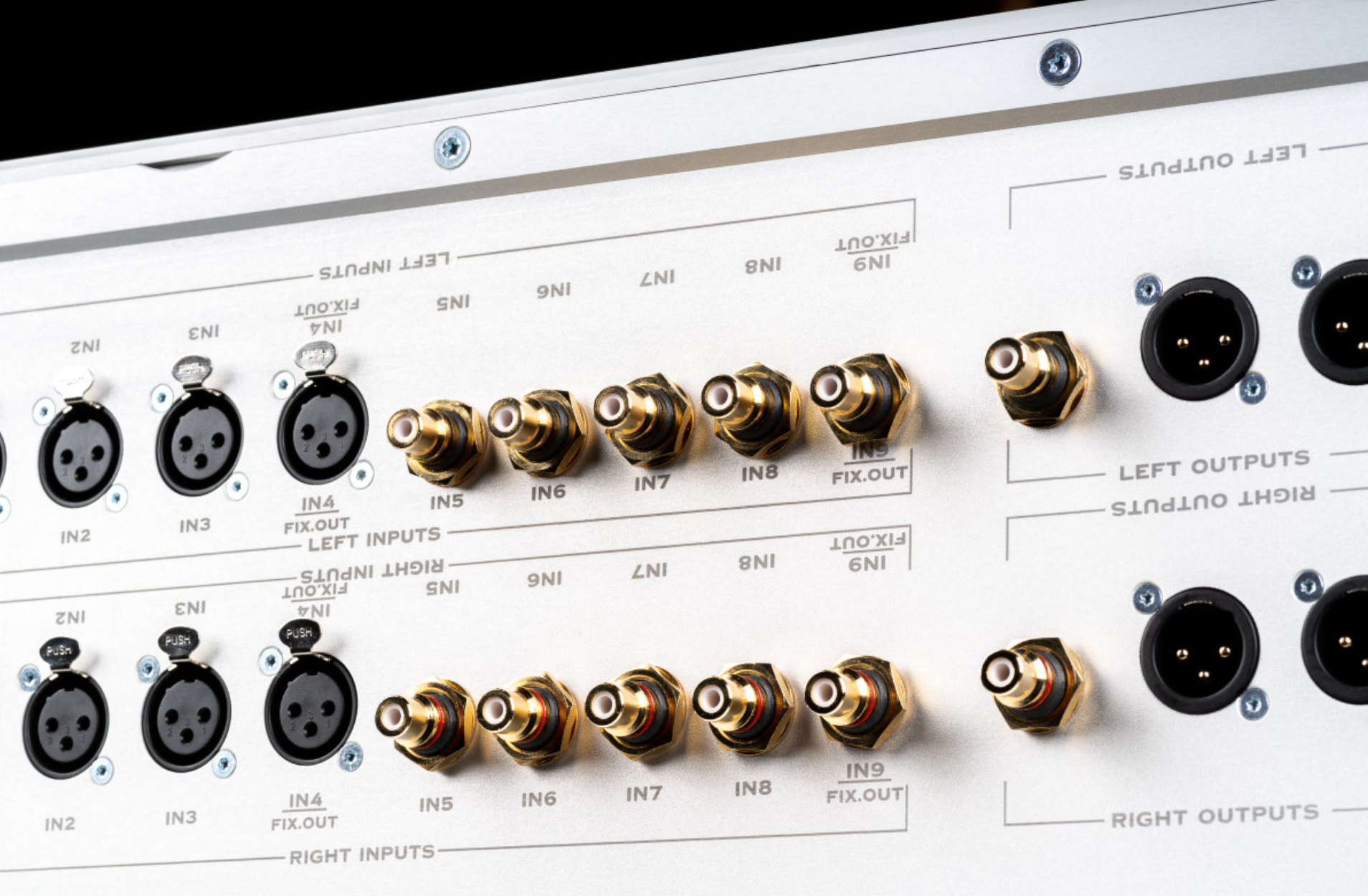

  • Canor Hyperion P1 Vacuum Tube Preamplifier in Silver. Back of unit
1 7

Canor Hyperion P1 Vacuum Tube Preamplifier

Canor Hyperion P1 Vacuum Tube Preamplifier

$20,995.00 AUD
$20,995.00 AUD
Sale Call For Availability
GSTincluded. Shipping Policy
  • AFTER PAY
  • ZIP PAY
  • LAY BUY
  • 755 NICHOLSON ST CARLTON NORTH
  • Full Aussie Manufact. Warranty
  • Free Shipping over $500
Colour

Introducing the stunning Hyperion P1

The Reference Line Vacuum Tube Preamplifier from Canor

Hyperion P1 is a brand new vacuum tube preamplifier of pure A-class with zero feedback designed and produced by CANOR and is considered to be their reference preamplifier.

The name "Hyperion" originates in Greek mythology - the god of the sun; in later mythology identified with Apollo and was distinguished for his beauty (the model of manly beauty, synonymous with Apollo).

Highlights

  1. The solid aluminium chassis provides excellent overall durability and reduces vibrations
  2. Zero global feedback - results in a sound that is more musical and realistic in numerous aspects
  3. Perfect filtration solution thanks to the specially designed power transformer

    Accurate Balanced Attenuator

    The attenuator is located in the special aluminium box (10mm thick walls) which provides perfect shielding and thanks to the special design it also absorbs the vibrations.

    Zero Global Feedback

    The Hyperion P1 is a Class-A preamplifier and was designed to avoid ANY global feedback.

    Anti-Vibration

    The attenuator, as well as the electronic part, are installed on anti-vibration pads (columns) which contributes to the overall elimination of vibrations.

    Interference Elimination

    The analogue partition is separate from the power partition by a solid aluminium wall (10mm thick) which contributes to the elimination of interference.

    Attenuator Control

    The attenuator controls are galvanically separated via optical drivers.

    Product features

    • The attenuator is located in a special aluminium box (10 mm thick walls) which provides perfect shielding and thanks to the special design it also absorbs the vibrations.
    • Designed to avoid ANY global feedback.
    • The attenuator, as well as the electronic part, are installed on anti-vibration pads (columns) which contributes to the overall elimination of vibrations.
    • The analog part is separated from the power part by a solid aluminium wall (10 mm thick) which contributes to the elimination of interference.
    • The attenuator control is galvanically separated via optical drivers.

    Technical Specifications

    Gain (XLR OUT)
    11 dB

    Output Impedance
    < 150 Ω

    Frequency Response
    10 – 80 000 Hz ± 0,1 dB

    Input Impedance
    30 kΩ

    Inputs
    4x XLR, 5x RCA (1 x Fix.out)

    Total Harmonic Distortion
    < 0.005% (1 kHz, 2 V RMS) XLR / < 0.3 % (1 kHz, 49 V RMS) XLR

    Channel Separation
    > 110 dB

    Signal-to-noise ratio
    > 115 dB (20 Hz – 80 kHz)

    Tube Complement
    4x 6922
    2x 6H30PI

    Power
    230 V / 50 - 60 Hz / 180 VA

    Dimensions (w x h x d)
    450 x 190 x 465 mm

    Weight (net)
    29 kg



    *This information has been obtained from Manufacturers website. We advise that Features & Specifications are subject change from Manufacturer without notice.

    E&OE
