B&W CCM663 In-Ceiling Speakers (Pair)
"WE ASSURE YOU THAT ALL OUR PRODUCTS ARE 100% GENUINE AND COME WITH A FULL AUSTRALIAN WARRANTY."

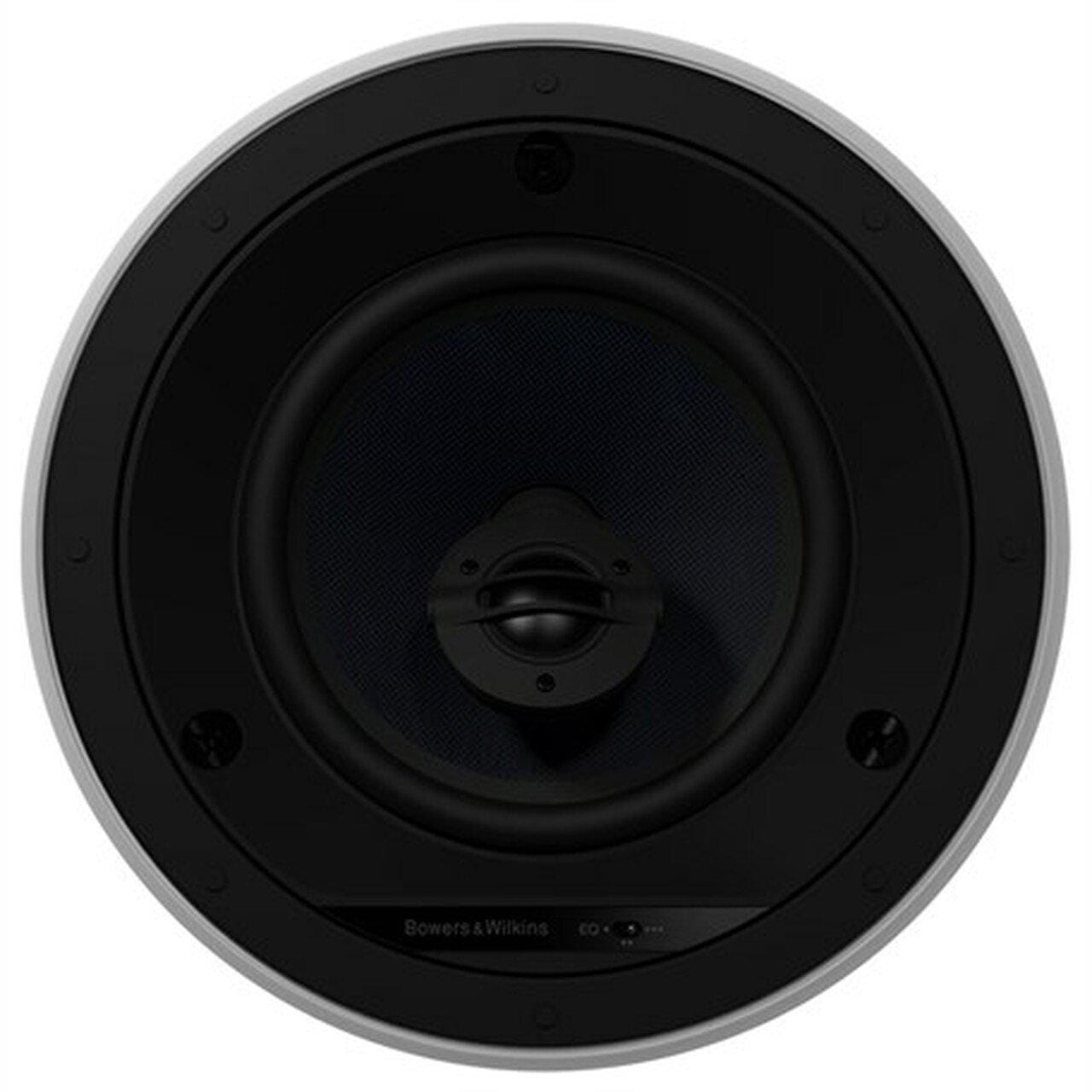

Meet the CCM663 In-Ceiling Speakers
Brought to you by Bowers & Wilkins
This high-performance 6in in-ceiling speaker features a Nautilus swirl-loaded 25mm (1in) aluminium dome tweeter that pivots for adjustable off-axis treble response.
Other highlights include a bass/midrange driver with a rigid die-cast chassis and a three-position EQ switch. The maximum amp power is 130W. Installation couldn’t be easier, thanks to our QuickDogs™ fixing system and plug-and-play connection.
Technical Specifications
|
Description |
2-way in-ceiling system |
|
Drive Units |
1x ø25mm (1in) Nautilus™ swirl loaded aluminium dome tweeter |
|
Frequency Range (-6dB) |
45Hz – 50kHz |
|
Recommended Amp Power |
25 – 130w |
|
Sensitivity SPL (2.83V, 1m) |
88dB |
|
Impedance Nominal (min) |
8Ω (4.5Ω) |
|
Frame diameter |
240mm (9.5in) |
|
Cut-out diameter |
202mm (8in) |
|
Depth behind surface |
133mm (5.2in) |
|
Protrusion |
4mm (0.2in) |
|
Pre-mount Kit |
C6 |
|
Back Box |
6C |
*Reprint from Manufacturers website
